Zicon ZNB-358D-SH-LED Addressable Photo & Heat Multi Detector EN54-5/7 A1R
Item Specifications :
Brand: Zicon
Product Type: Addressable Photo & Heat Multi Detector
Model Number: ZNB-358D-SH-LED
Standard: EN54-5/7 A1R
Operating Voltage: 17–28V DC
Operating Temperature: -10°C to +50°C
Standby Current: <600µA
Alarm Current: 7mA
Cycle Time: 1 Second
Certification: CE 0845
Certified By: Danish Institute of Fire and Security Technology
Certificate Number: EN54-5/7 Certified 0845-CPD-232.1632

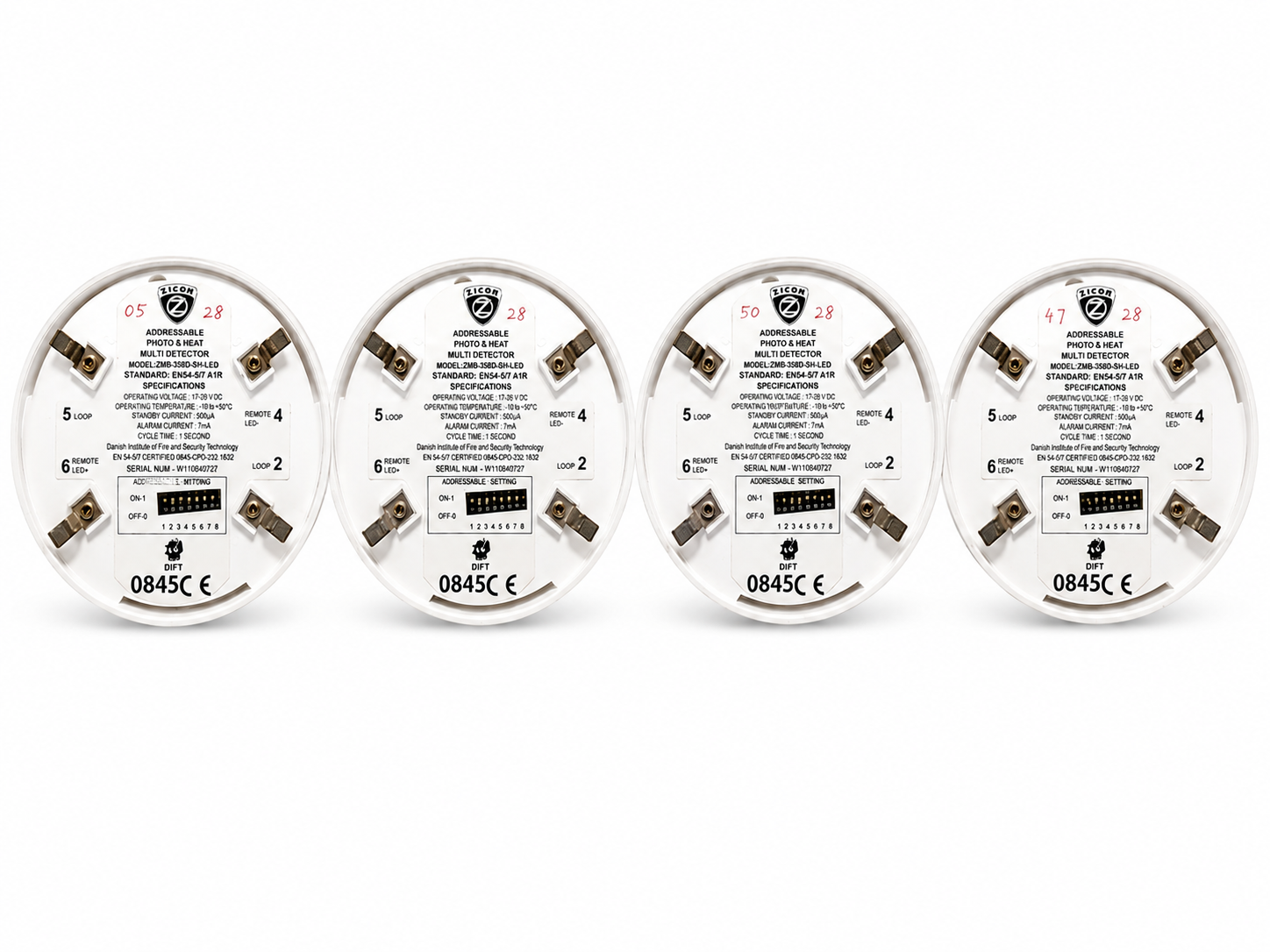

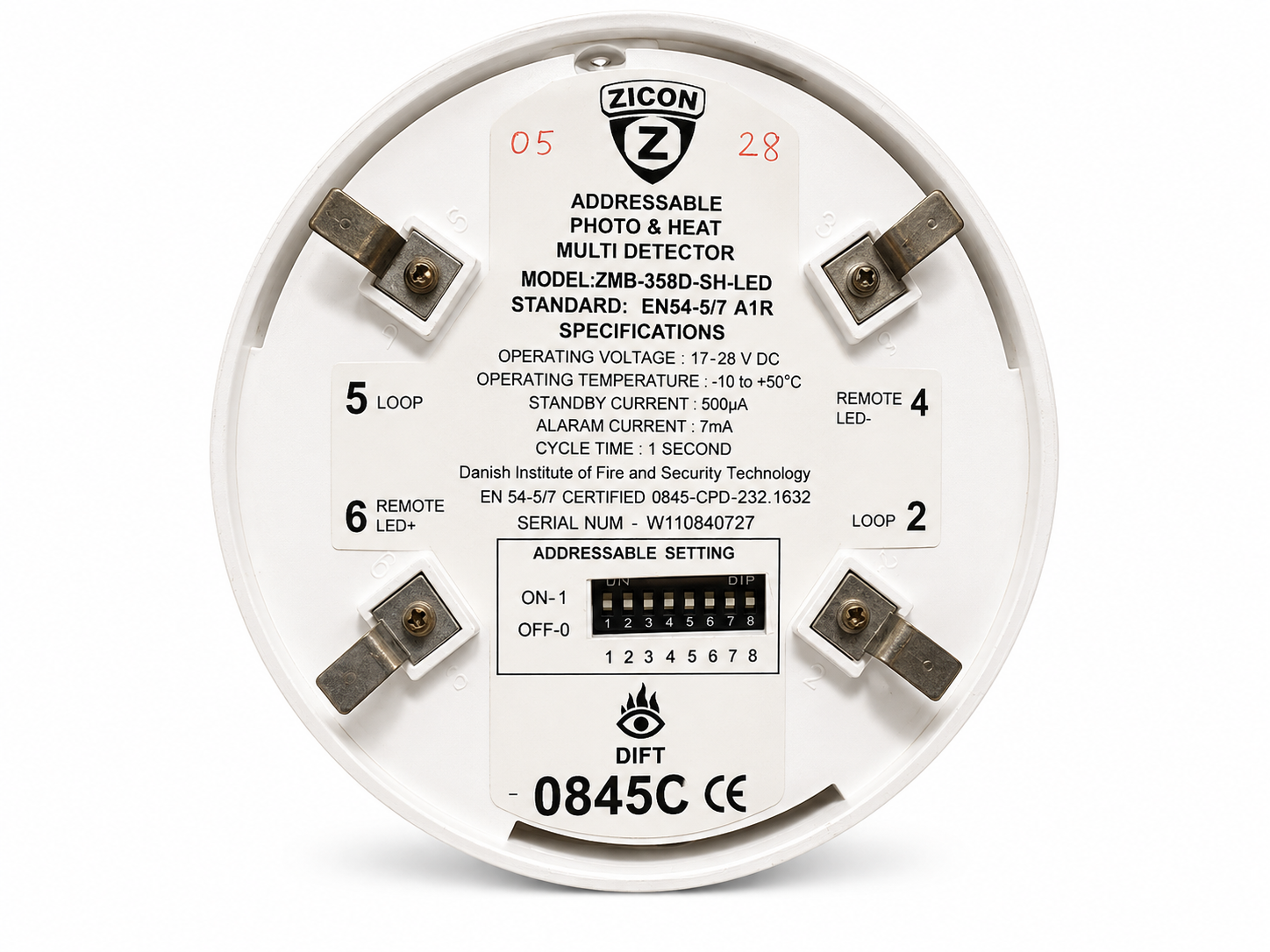

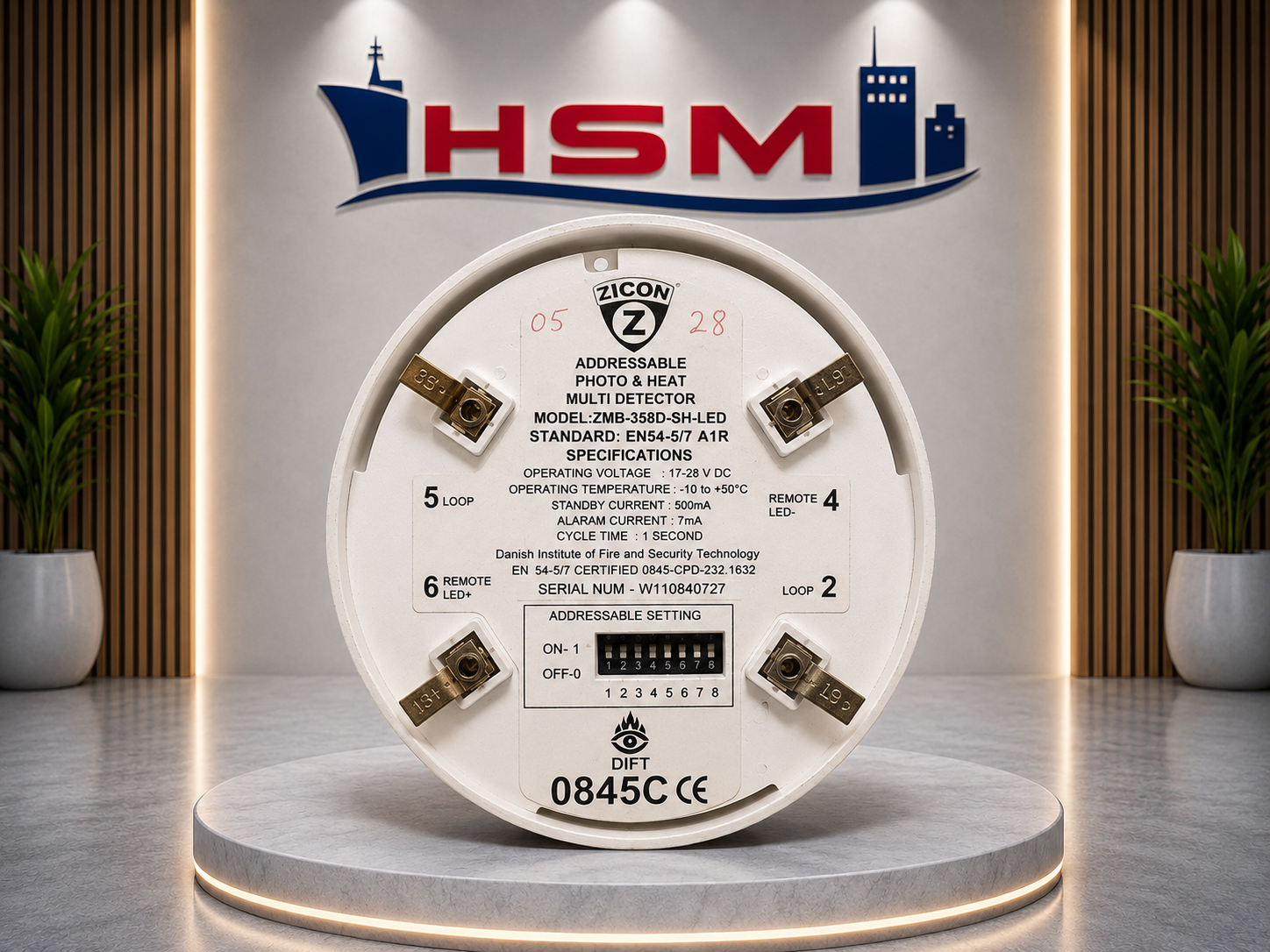

Address Setting: DIP switch address setting, ON = 1 / OFF = 0
Loop Terminals: Loop 2 and Loop 5
Remote LED Terminals: Remote LED- 4 / Remote LED+ 6
Harbourline Ship Management offers Zicon Addressable Heat Multi Detector, model ZNB-358D-SH-LED, designed for fire detection and safety monitoring systems.

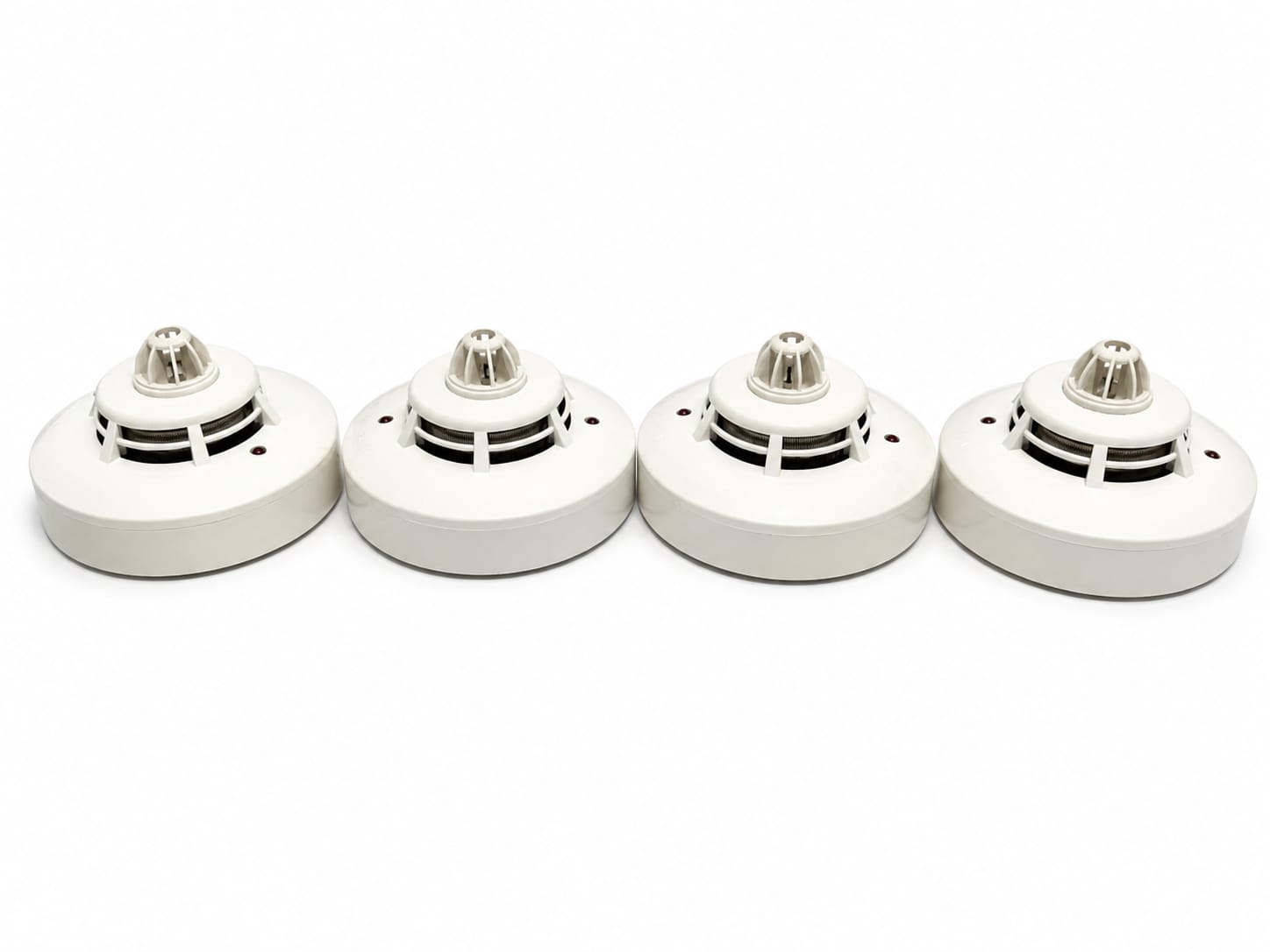

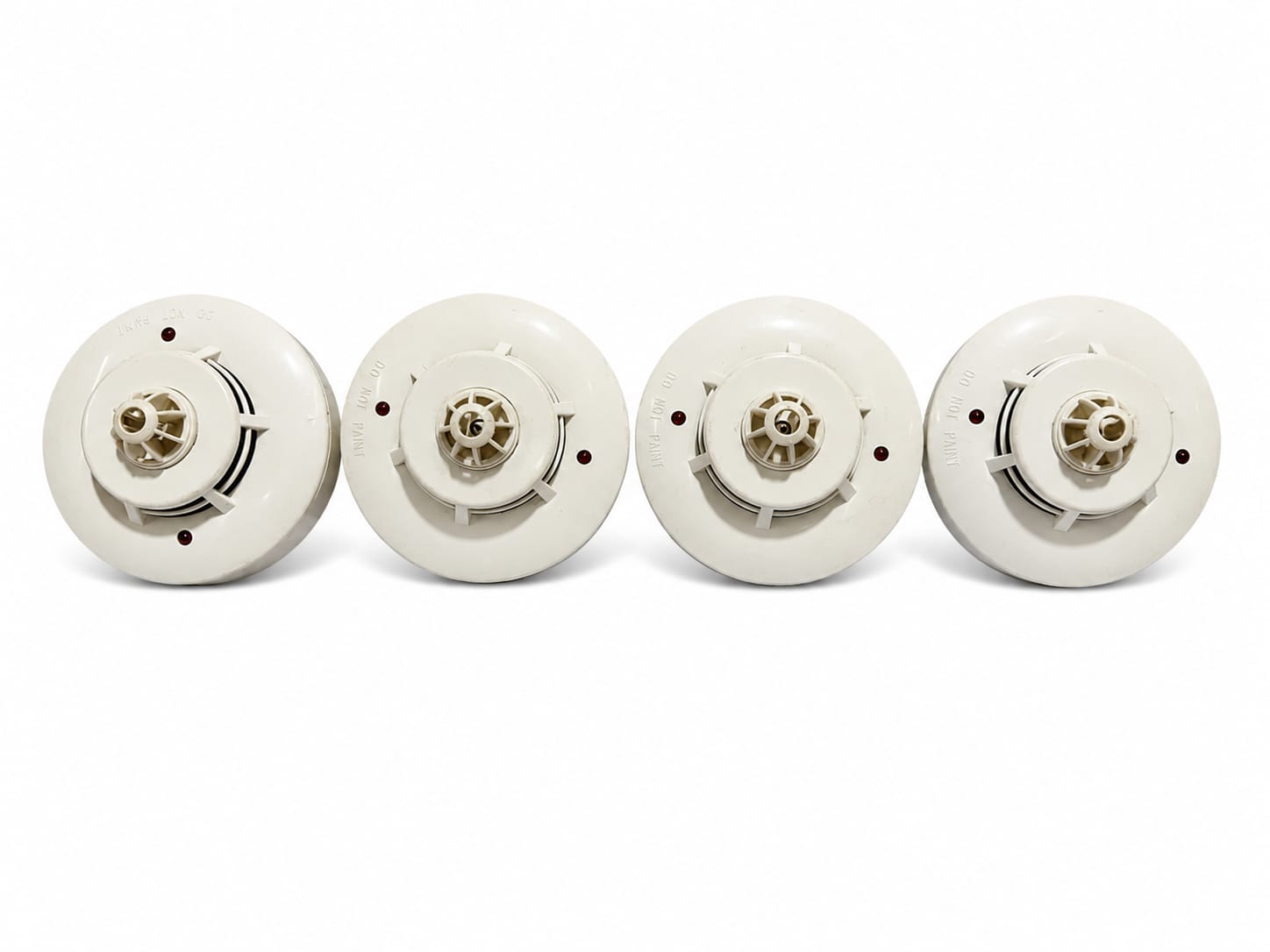

This detector combines smoke detection and heat detection in one compact unit, making it suitable for areas where both smoke and temperature changes need to be monitored. It is an addressable detector, meaning each detector can be identified individually in a fire alarm control system through its address setting.
The unit is marked with EN54-5/7 A1R standard, CE certification, and DIFT / Danish Institute of Fire and Security Technology certification, making it suitable for professional fire safety systems in marine, commercial, and industrial environments.
Key Features :
– Addressable photo and heat multi detector
– Combined smoke and temperature detection
– Suitable for modern fire alarm systems
– DIP switch address setting for individual detector identification
– Remote LED connection support
– Low standby current operation
– Fast detection cycle time of 1 second
– EN54-5/7 A1R certified standard
– CE marked fire safety component
– Suitable for marine, industrial, and commercial fire alarm panels
Application Field :
– Marine fire detection systems
– Ship accommodation area fire alarm system
– Engine control room safety monitoring
– Bridge and control panel fire alarm system
– Industrial building fire safety systems
– Commercial fire alarm installations
– Machinery room and electrical room monitoring
– Addressable fire alarm loop systems
