Honeywell UDC3300 Universal Digital Process Controller
Item Specifications :
Brand: Honeywell
Model: UDC3300
Product Type: Universal Digital Process Controller
Display Unit: % display marking on front panel
Power Supply: 90–250 VAC
Frequency: 50/60 Hz
Power Consumption: 18VA
Operating Temperature: 0 to 55°C
Front Indicators: ALM, DI, RSP, OUT
Front Buttons: Function, Lower Display, Reset, Set Up, Up/Down keys
Control Output Marking: CTL 1 / CTL 2
Signal Marking: 4–20 mA visible on wiring diagram
Alarm Output: ALM 1 / ALM 2
Digital Inputs: DI 1 / DI 2
Communication Marking: RX+/TX+, RX-/TX-, TX+/AUX+, TX-/AUX-
Input Terminals: IN 1 / IN 2 visible on wiring diagram
Origin Marking: Honeywell, York, PA, U.S.A.

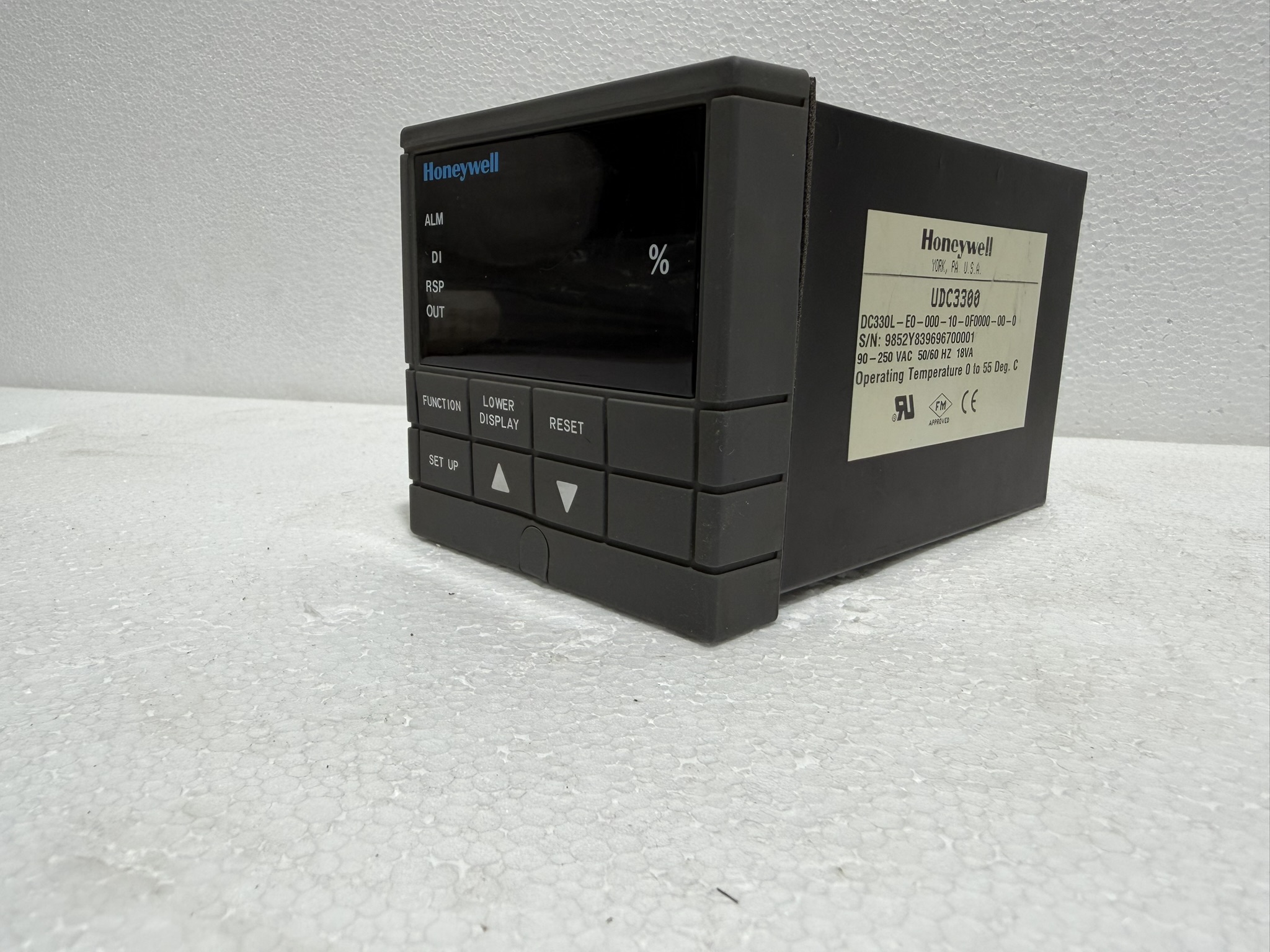

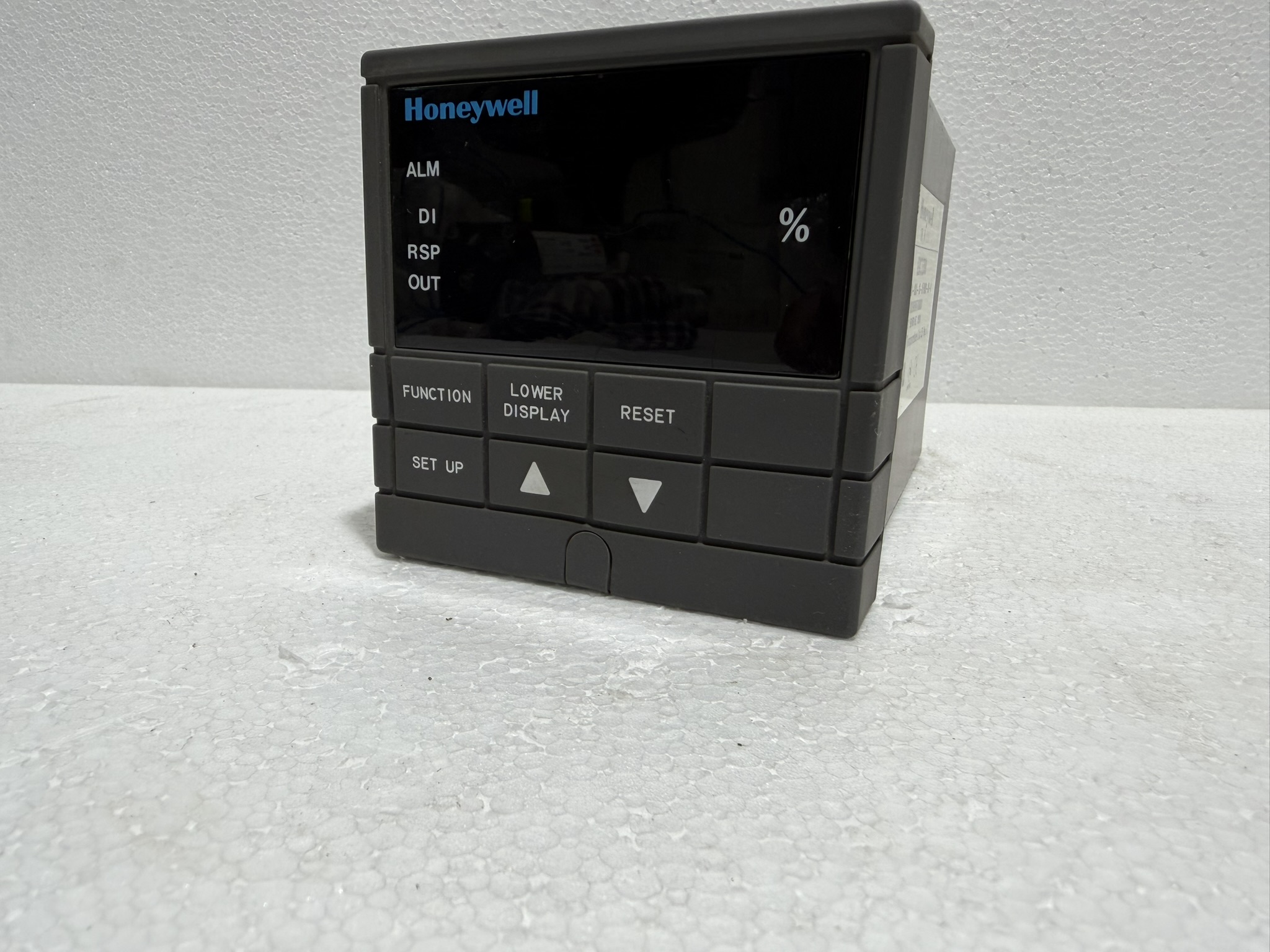

Harbourline Ship Management offers a Honeywell UDC3300 Universal Digital Process Controller, designed for industrial and marine process control applications where accurate monitoring and control of process variables is required. The front panel includes display indicators for ALM, DI, RSP and OUT, along with function keys such as Function, Lower Display, Reset, Set Up and arrow keys for configuration and operation.

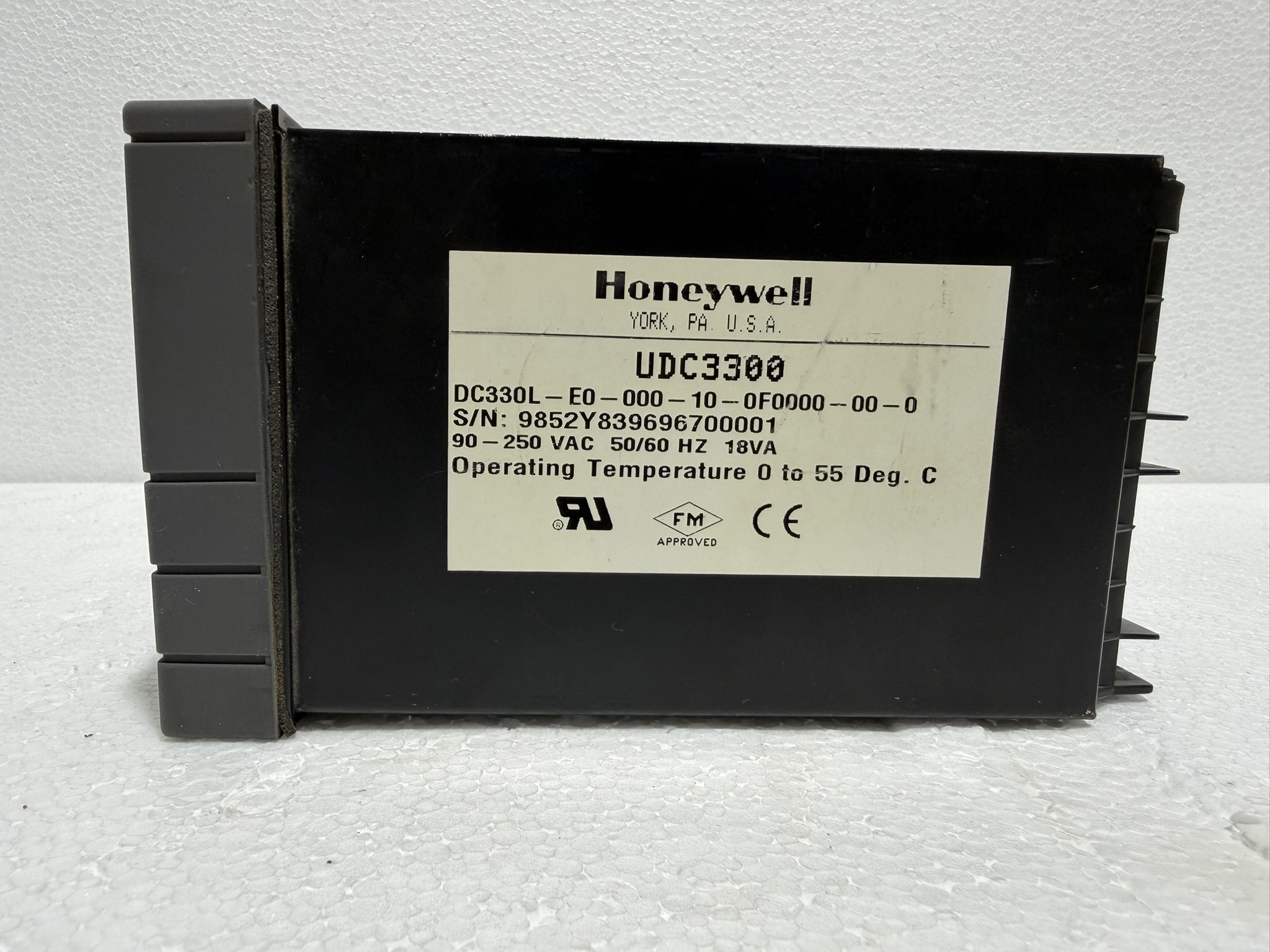

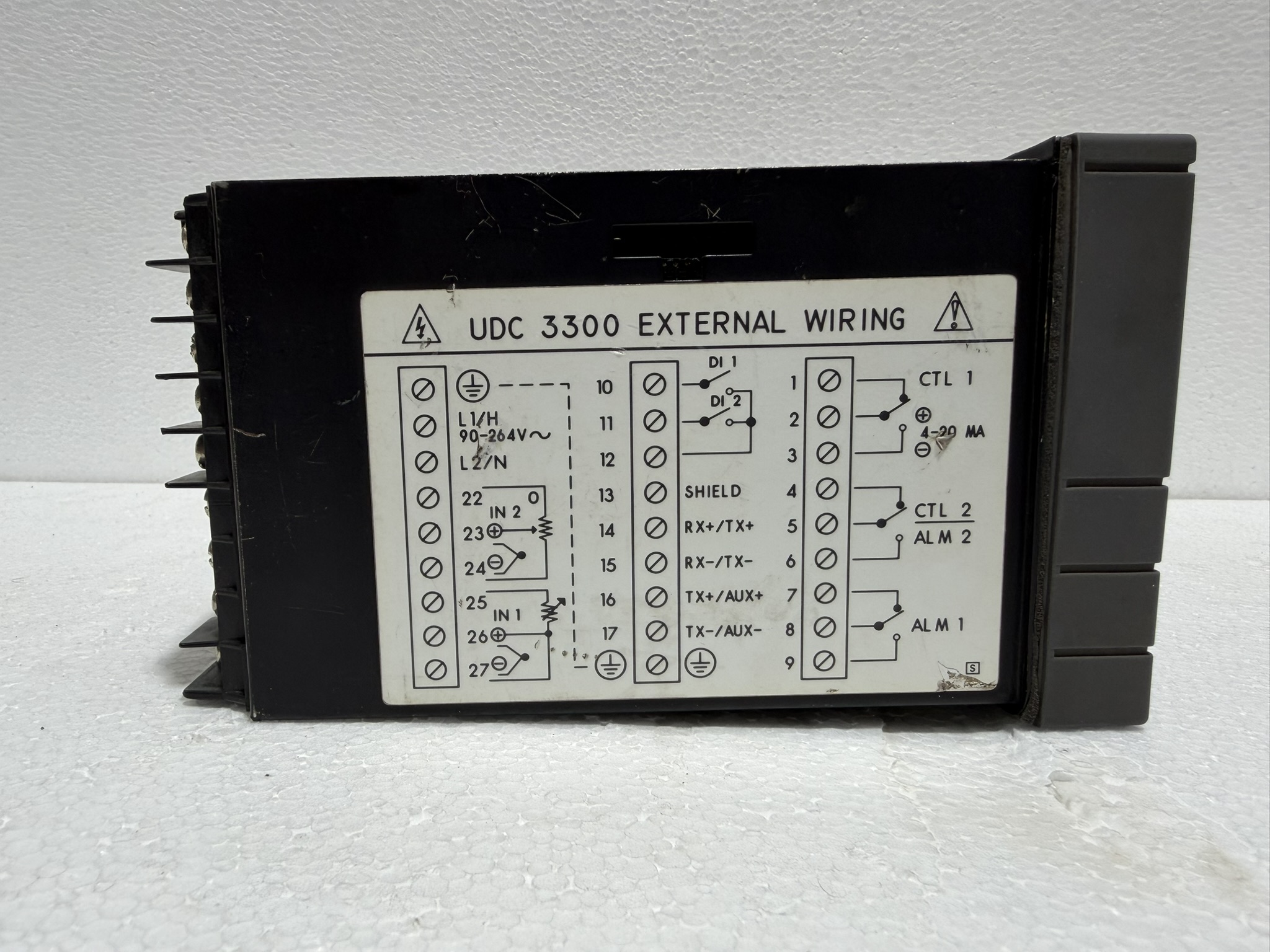

The product label shows Model: UDC3300, Part Code: DC330L-E0-000-10-0F0000-00-0, Power Supply: 90–250 VAC, 50/60Hz, 18VA, and Operating Temperature: 0 to 55°C. The rear wiring diagram shows controller terminals for Input 1, Input 2, DI1, DI2, communication terminals, CTL outputs, 4–20mA signal, Alarm 1 and Alarm 2, making it suitable for process automation and panel control systems. Honeywell UDC3300 manuals describe it as a universal digital controller used for installation, configuration, operation and troubleshooting in process-control applications.
Features :
– Original Honeywell UDC3300 universal digital controller
– Suitable for process control, monitoring and automation panels
– Wide power input: 90–250 VAC, 50/60Hz
– Front display with % indication
– Alarm, digital input, remote setpoint and output status indicators
– Supports 4–20mA control signal as per rear wiring diagram
– Includes wiring options for alarms, control outputs and digital inputs
– Clear front keypad for configuration and reset functions
– Panel-mount industrial controller design
– Useful for replacement, maintenance and automation spare stock
Application Field :
– Marine automation control panels
– Ship engine room monitoring systems
– Boiler control and temperature control panels
– Pump, compressor and generator control systems
– Fuel, oil, pressure and flow process control
– Industrial PID control panels
– Process plant automation
– Alarm and control output systems
– 4–20mA signal-based control applications
– Marine electrical and instrumentation spare replacement
