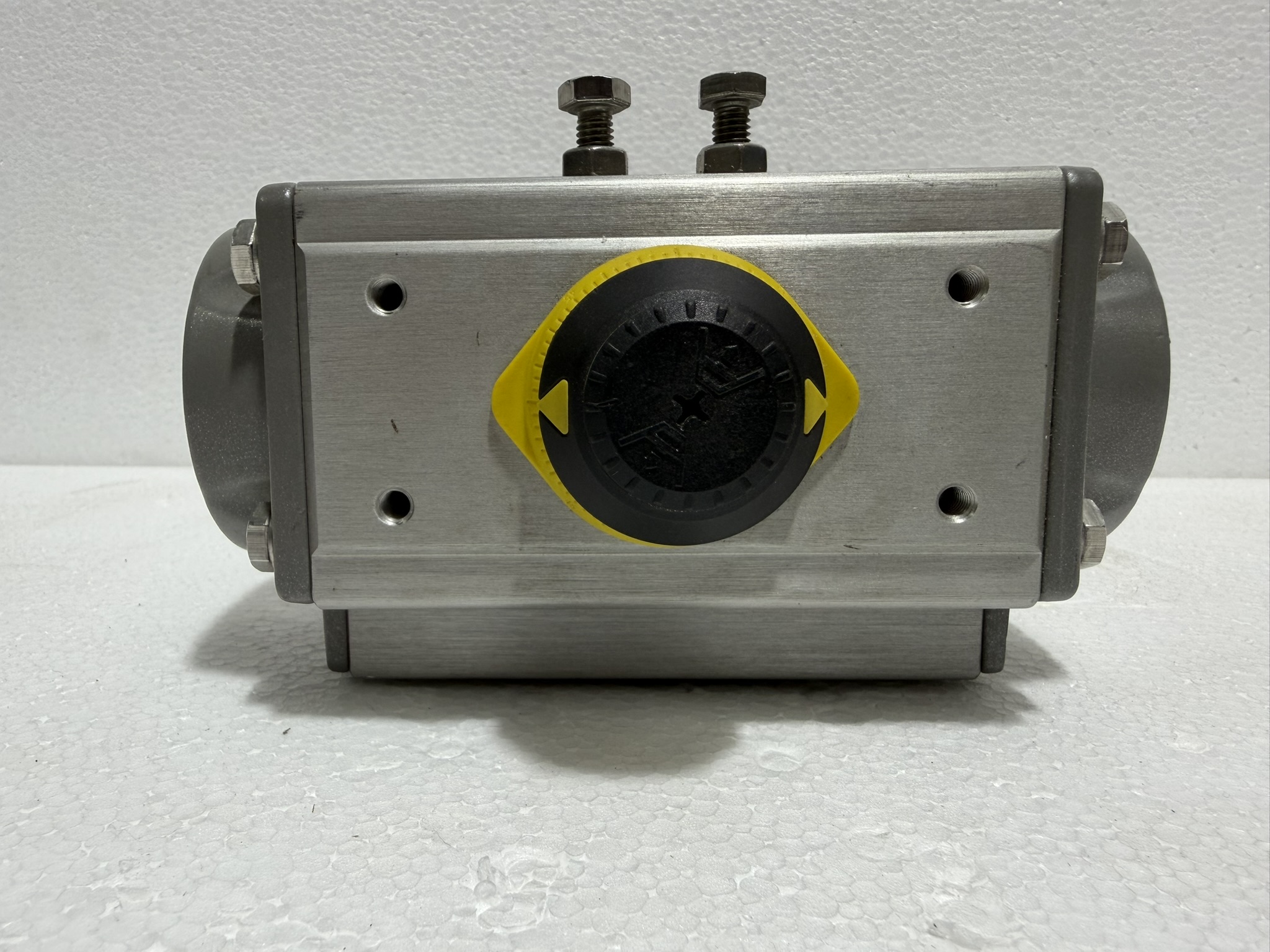

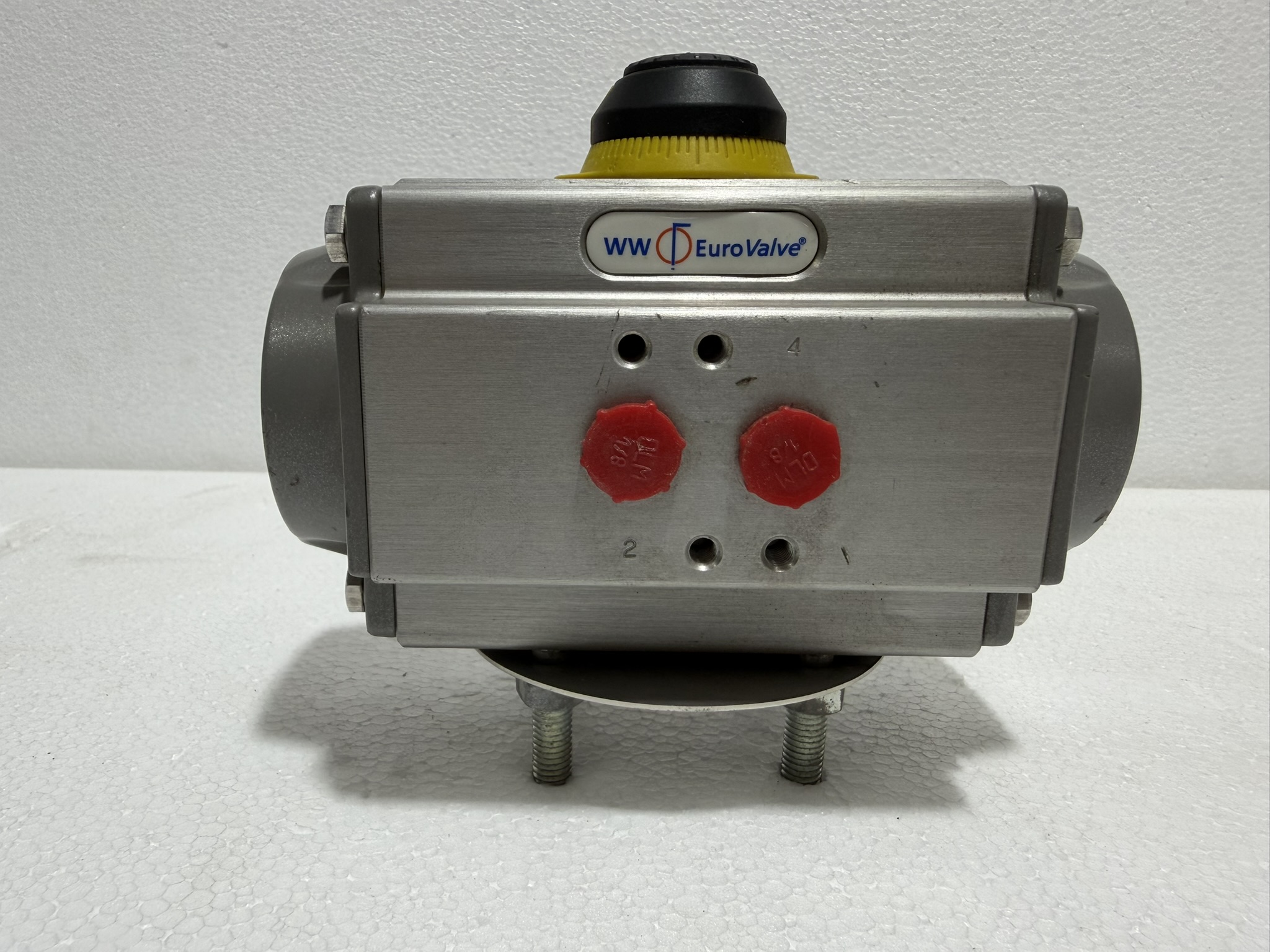

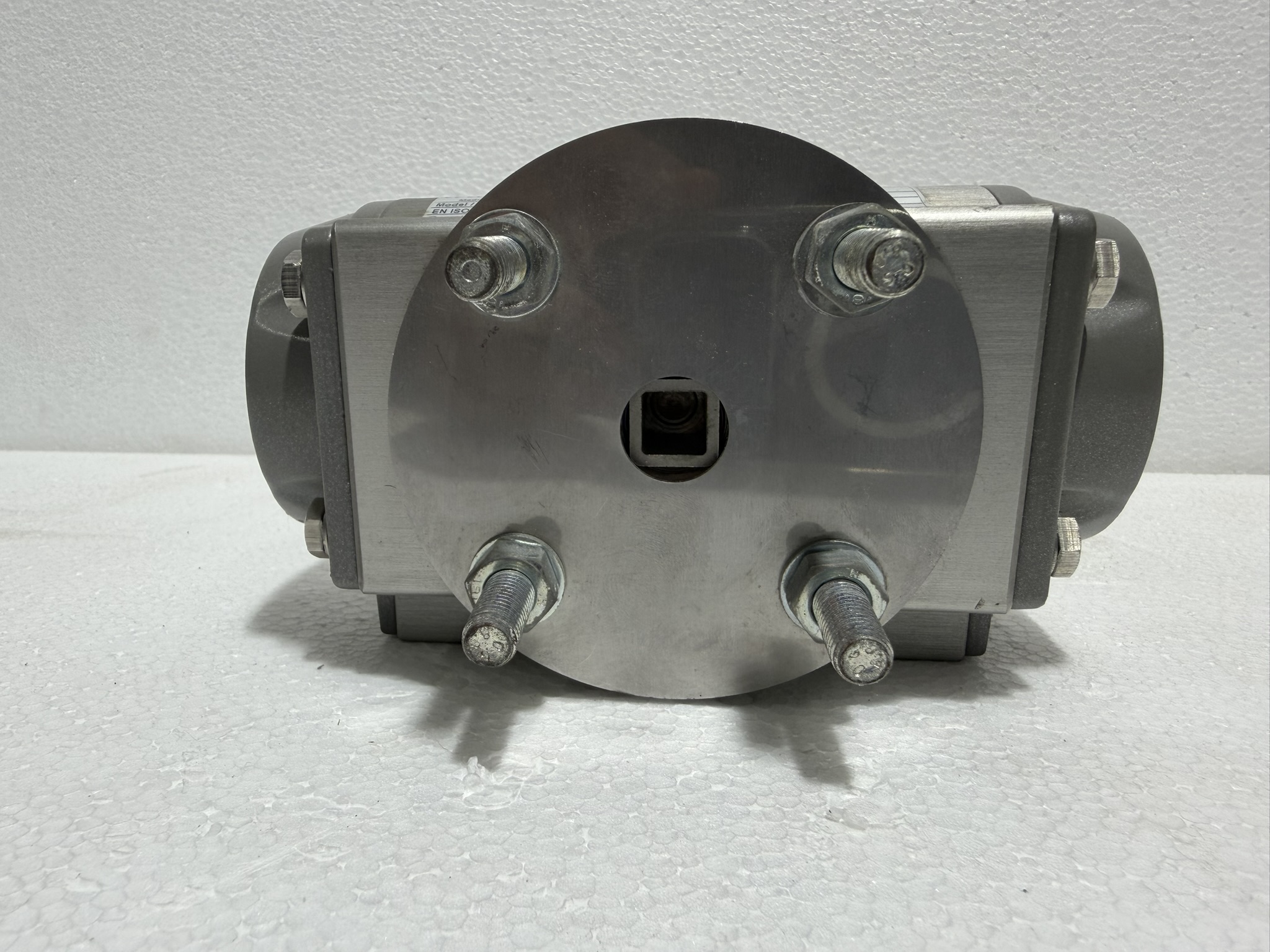

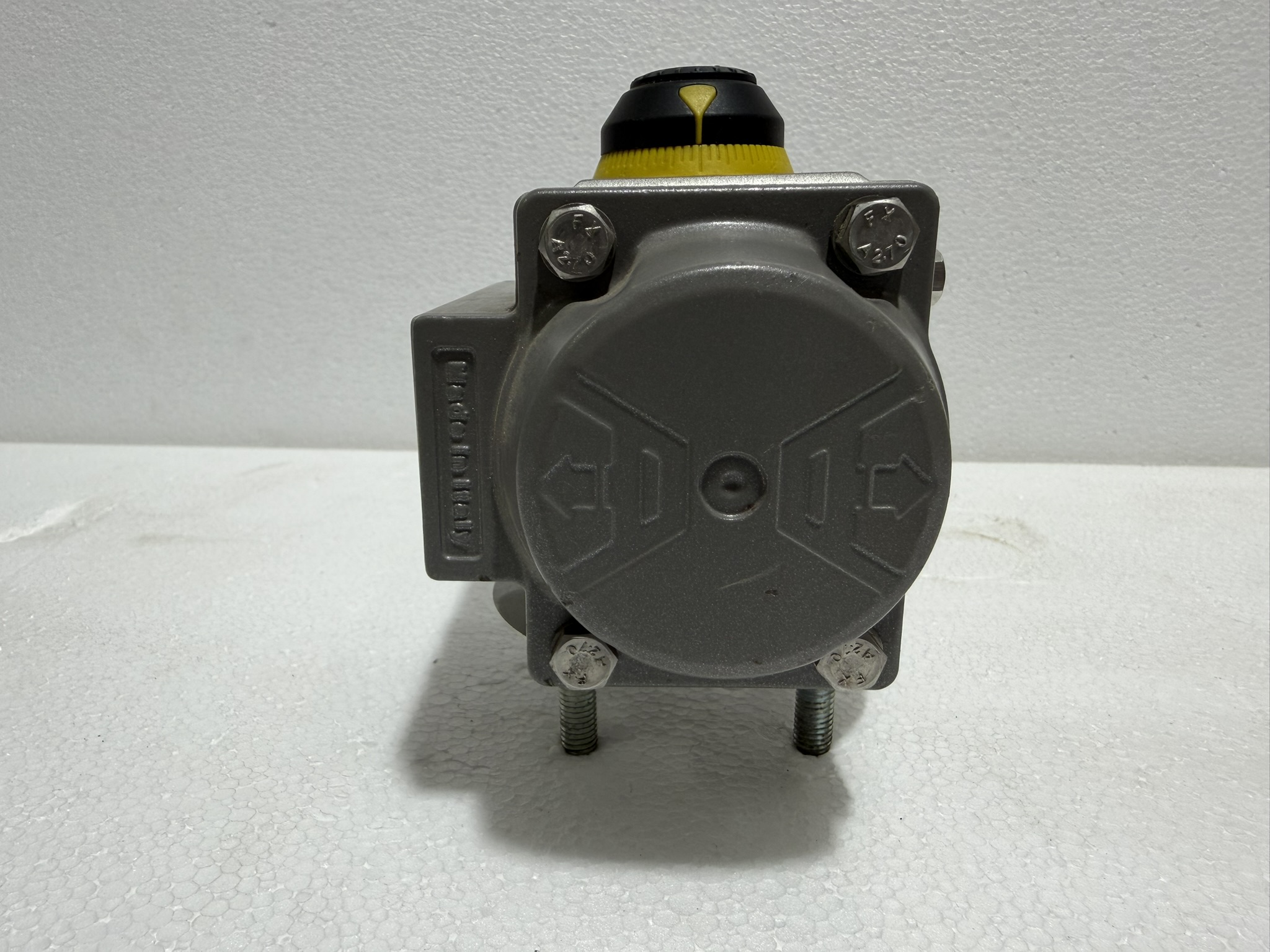

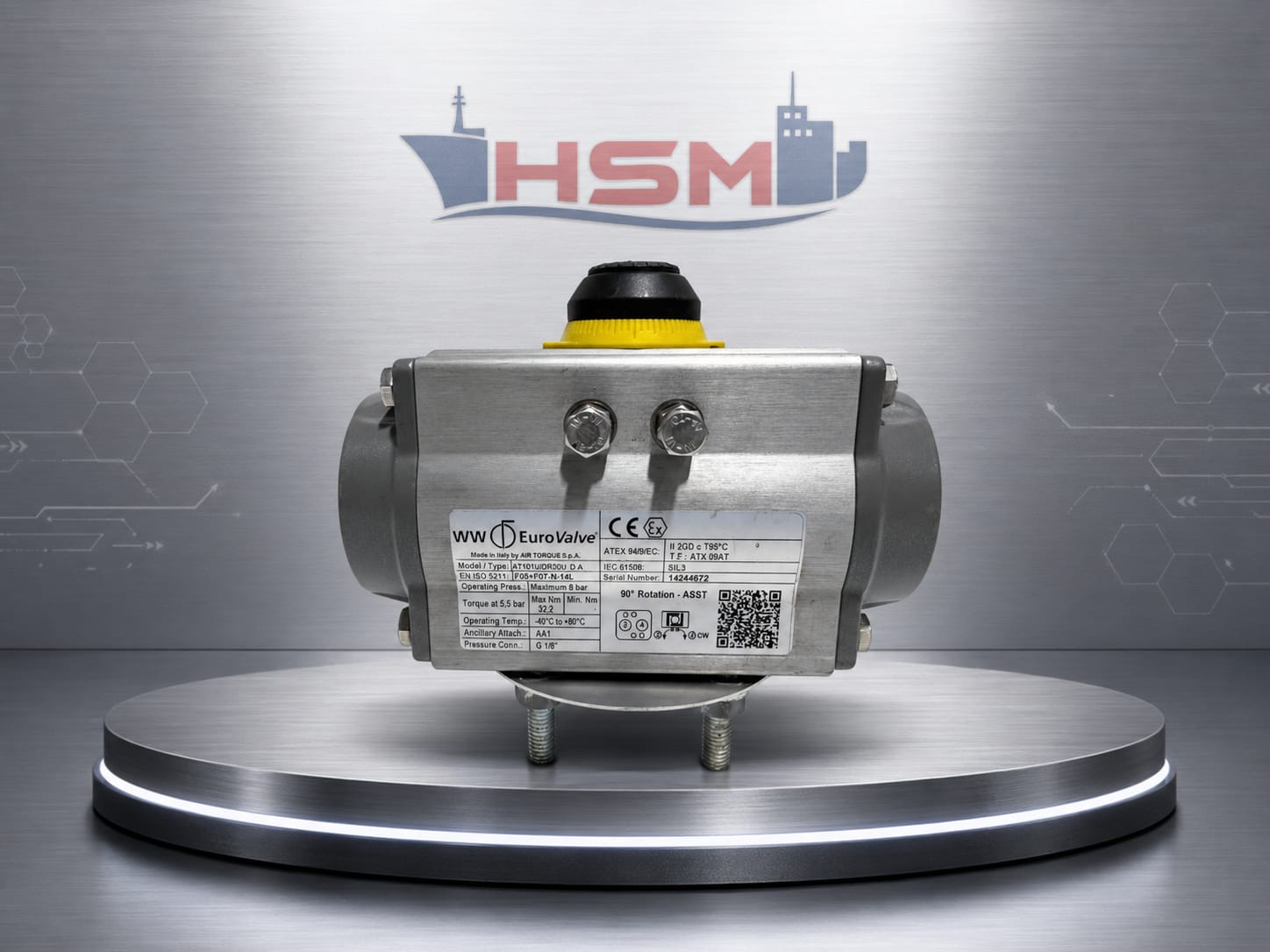

EuroValve / Air Torque Pneumatic Rotary Valve Actuator
Item Specification :
Brand: EuroValve
Manufacturer: Air Torque S.p.A.
Marking: Made in Italy
Product Type: Pneumatic Rotary Valve Actuator
Model : AT101U/DR30U DA
EN ISO 5211 Mounting: F05 + F07 – N – 14L
Operating Pressure: Maximum 8 bar
Torque at 5.5 bar: Max. 32.2 Nm
Rotation: 90° Rotation – ASST
Operating Temperature: -40°C to +80°C
Pressure Connection: G 1/8″
Ancillary Attachment: AA1
ATEX Marking: ATEX 94/9/EC
Explosion Protection Marking: II 2GD c T95°C
IEC 61508: SIL3
Actuator Type: Pneumatic Quarter-Turn Rotary Actuator
Indicator: Top visual position indicator
Application: Marine and industrial valve automation
Harbourline Ship Management offers a EuroValve Pneumatic Rotary Valve Actuator, manufactured in Italy by Air Torque S.p.A. This actuator is designed for reliable quarter-turn valve automation in marine and industrial systems.

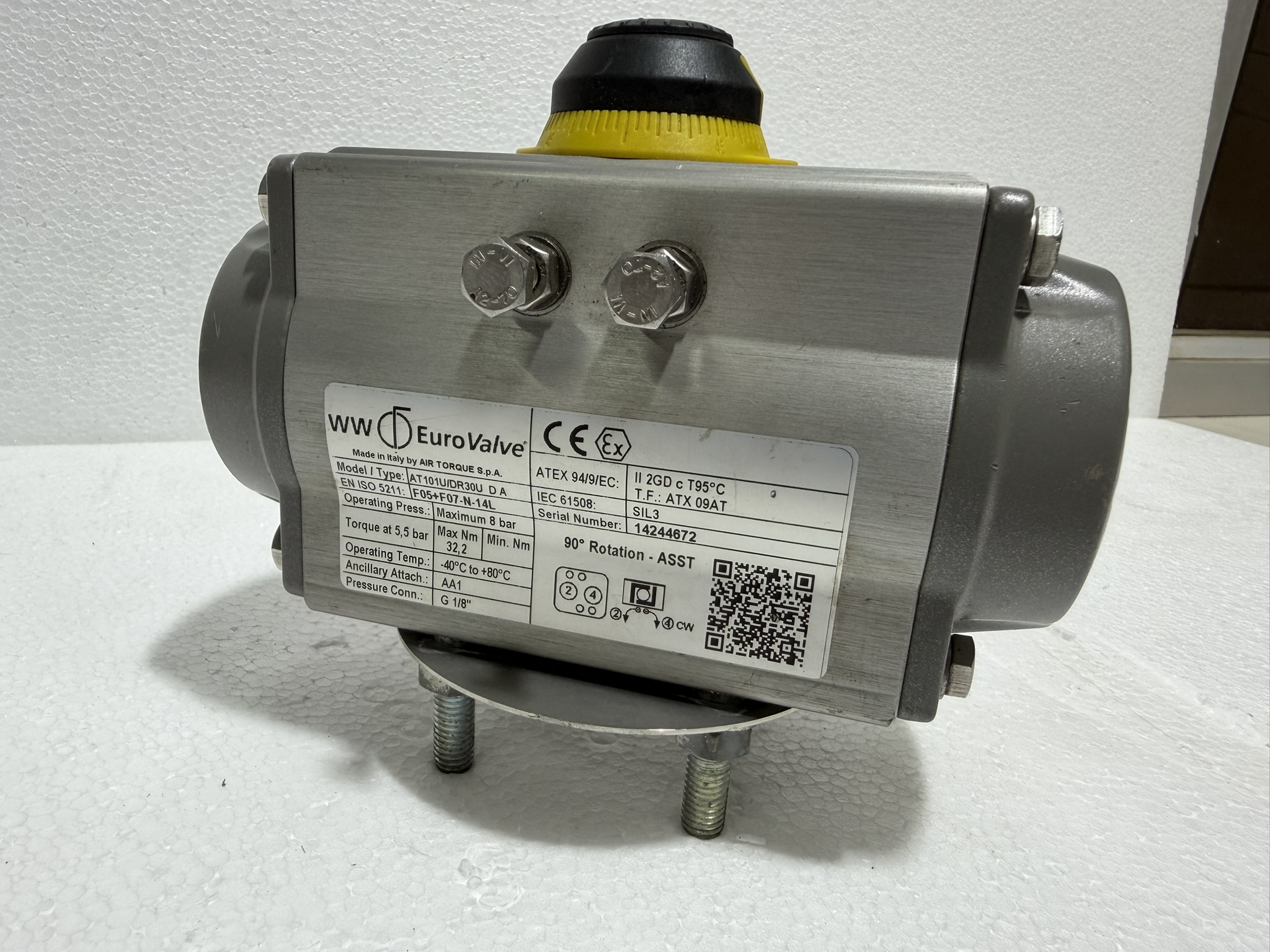

The product label shows Model/Type AT101U/DR30U DA, maximum operating pressure 8 bar, 90° rotation, SIL3, and ATEX 94/9/EC marking. It is suitable for operating ball valves, butterfly valves and other rotary valves where pneumatic actuation is required.
G 1/8″ pressure connection and robust mounting arrangement, this actuator is suitable for shipboard valve control systems, engine room automation, tank systems and industrial pneumatic valve operations.
Features :
– Original EuroValve / Air Torque pneumatic actuator
– 90° rotary operation for quarter-turn valves
– Suitable for ball valve and butterfly valve automation
– Maximum operating pressure up to 8 bar
– SIL3 marking for safety-related applications
– ATEX marked for hazardous area use
– Compact and strong aluminium actuator body
– Visual open/close position indicator on top
– G 1/8″ pneumatic pressure connection
– Suitable for marine automation, ship repair and industrial control systems
Application Field :
– Marine Valve Automation
– Ship Engine Room Control System
– Ball Valve Operation
– Butterfly Valve Operation
– Pneumatic Control System
– Fuel Oil / Lube Oil / Air / Water Line Valve Control
– Tank Valve Control System
– Ship Repair and Retrofit Work
– Industrial Process Valve Automation
– Hazardous Area Pneumatic Valve Control
