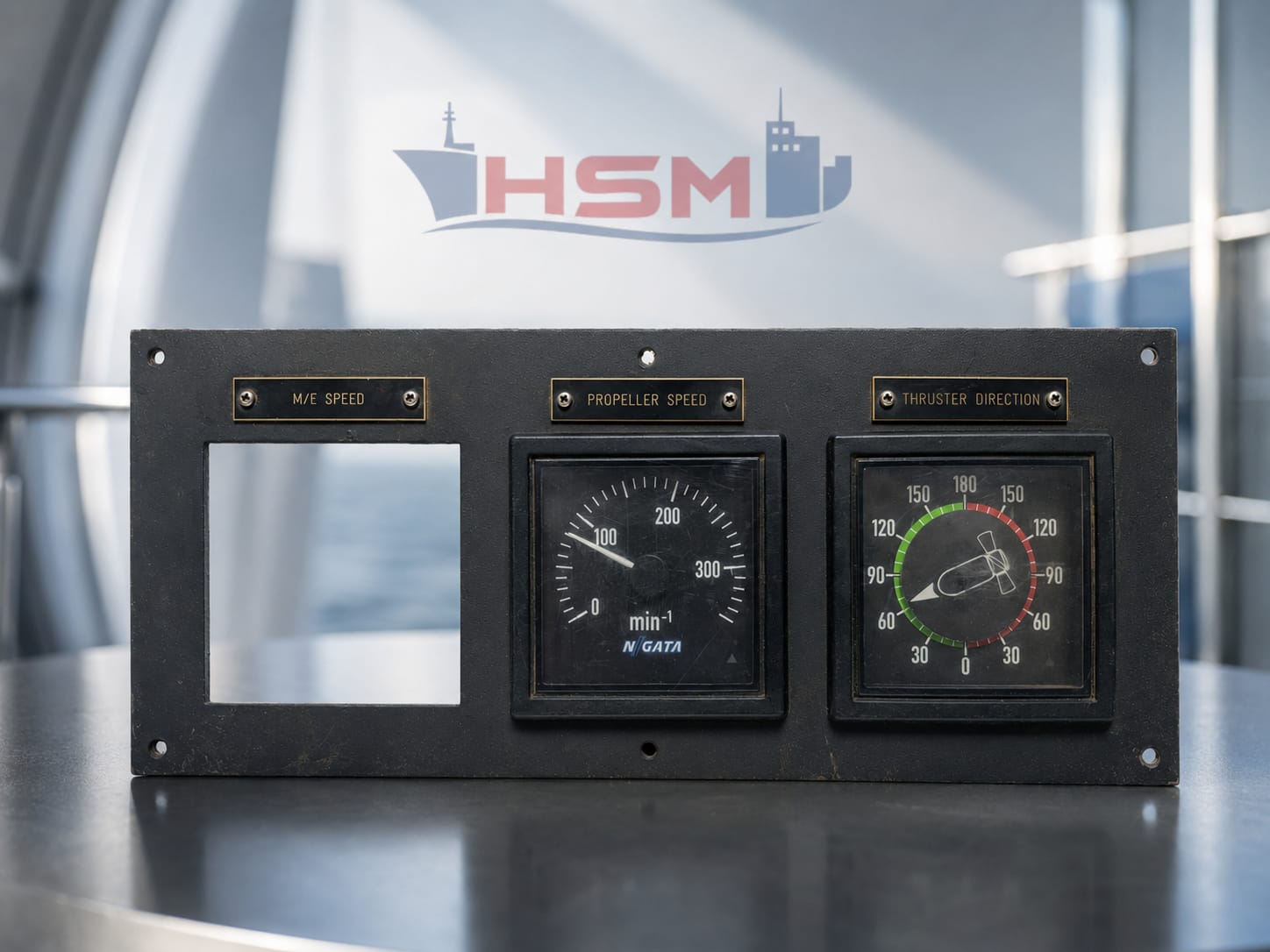

DEIF Left Arm Controller Panel with Propeller Speed & Thruster Direction Indicators – XL96 Modules
Item Specification :
Product Type: DEIF Left Arm Controller Panel Assembly
Application: Thruster Control System

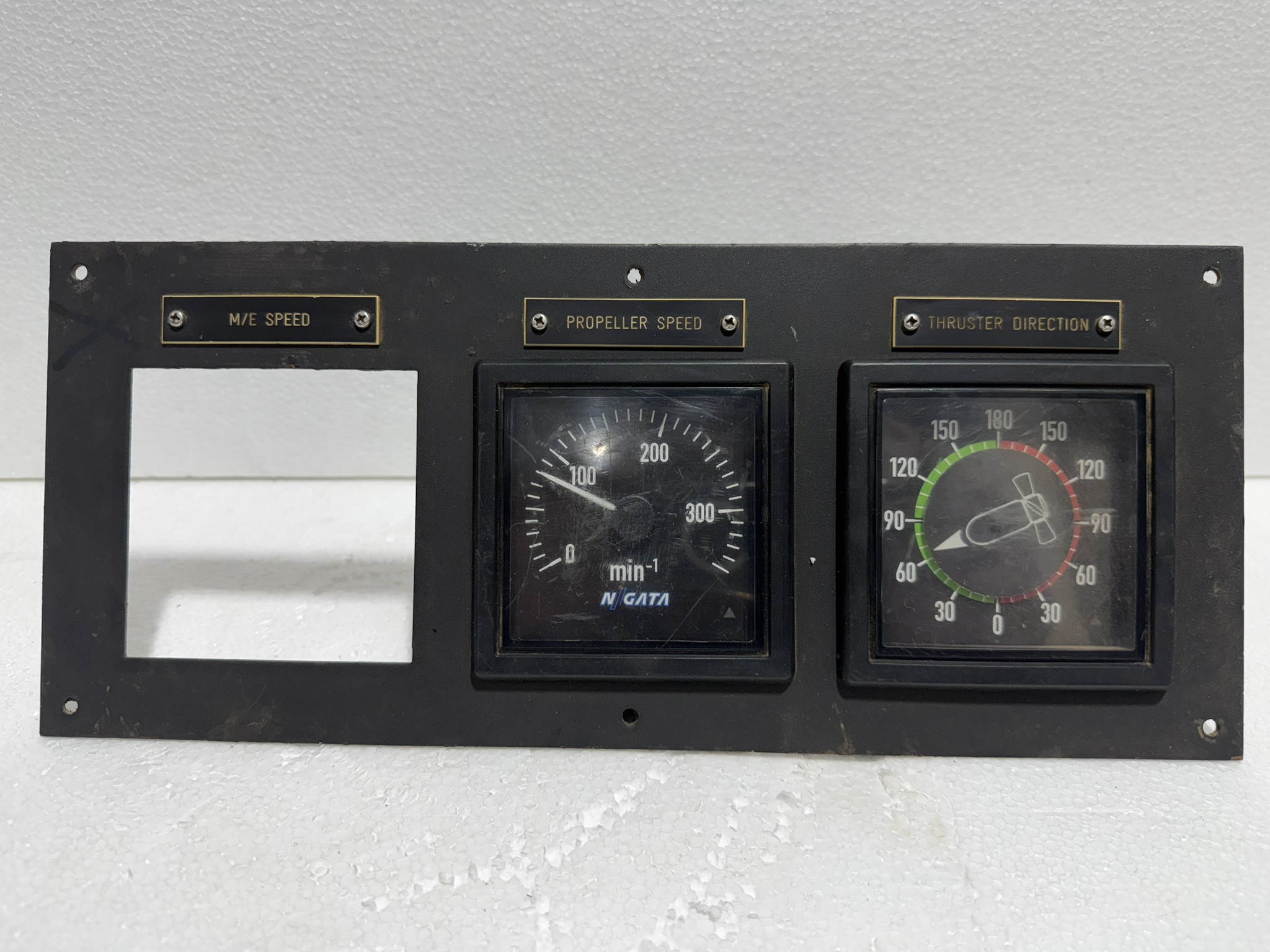

Panel Marking: M/E Speed, Propeller Speed, Thruster Direction

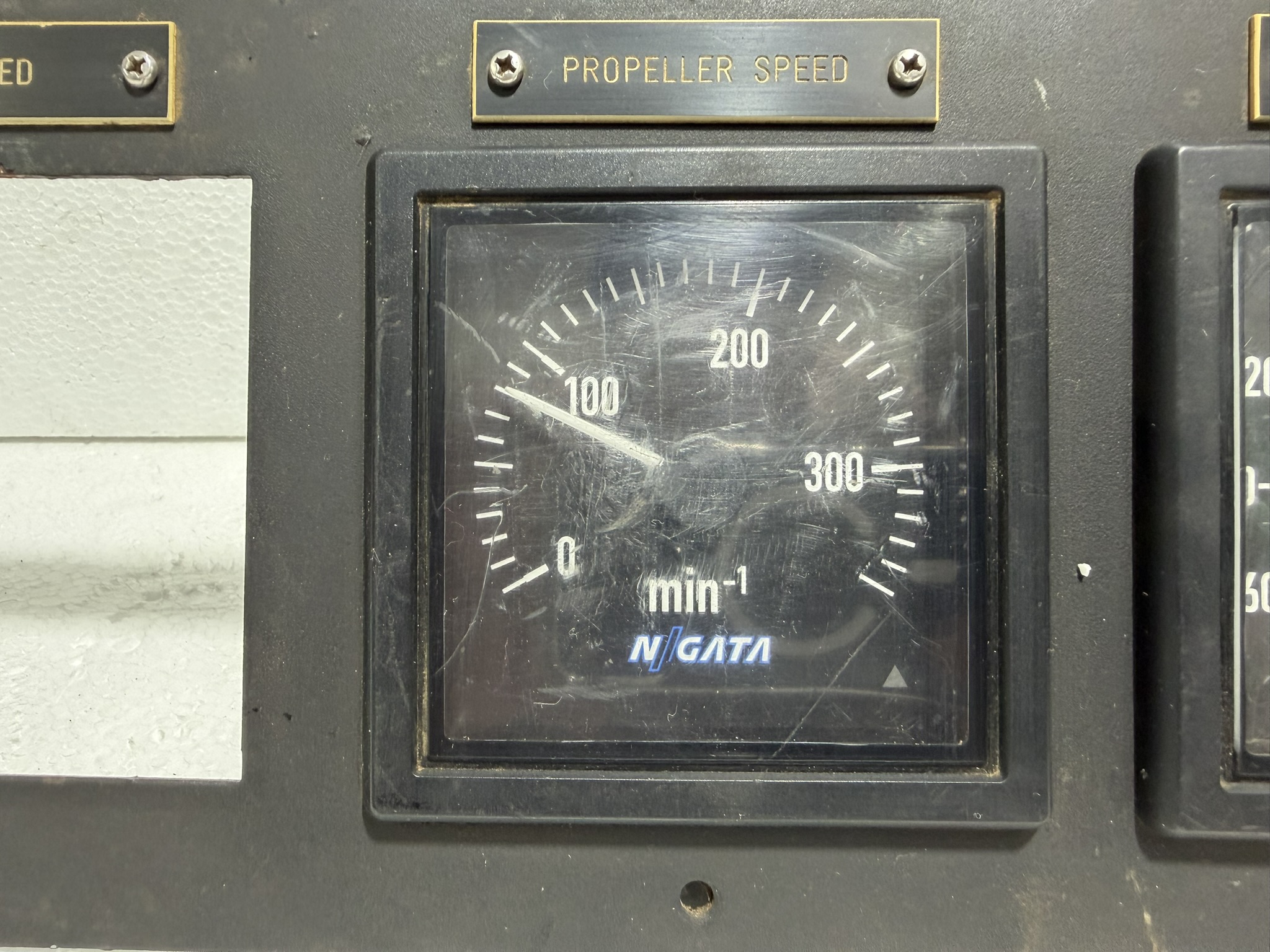

Installed Indicator 1: Propeller Speed Indicator
Propeller Speed Scale: 0–300 min⁻¹

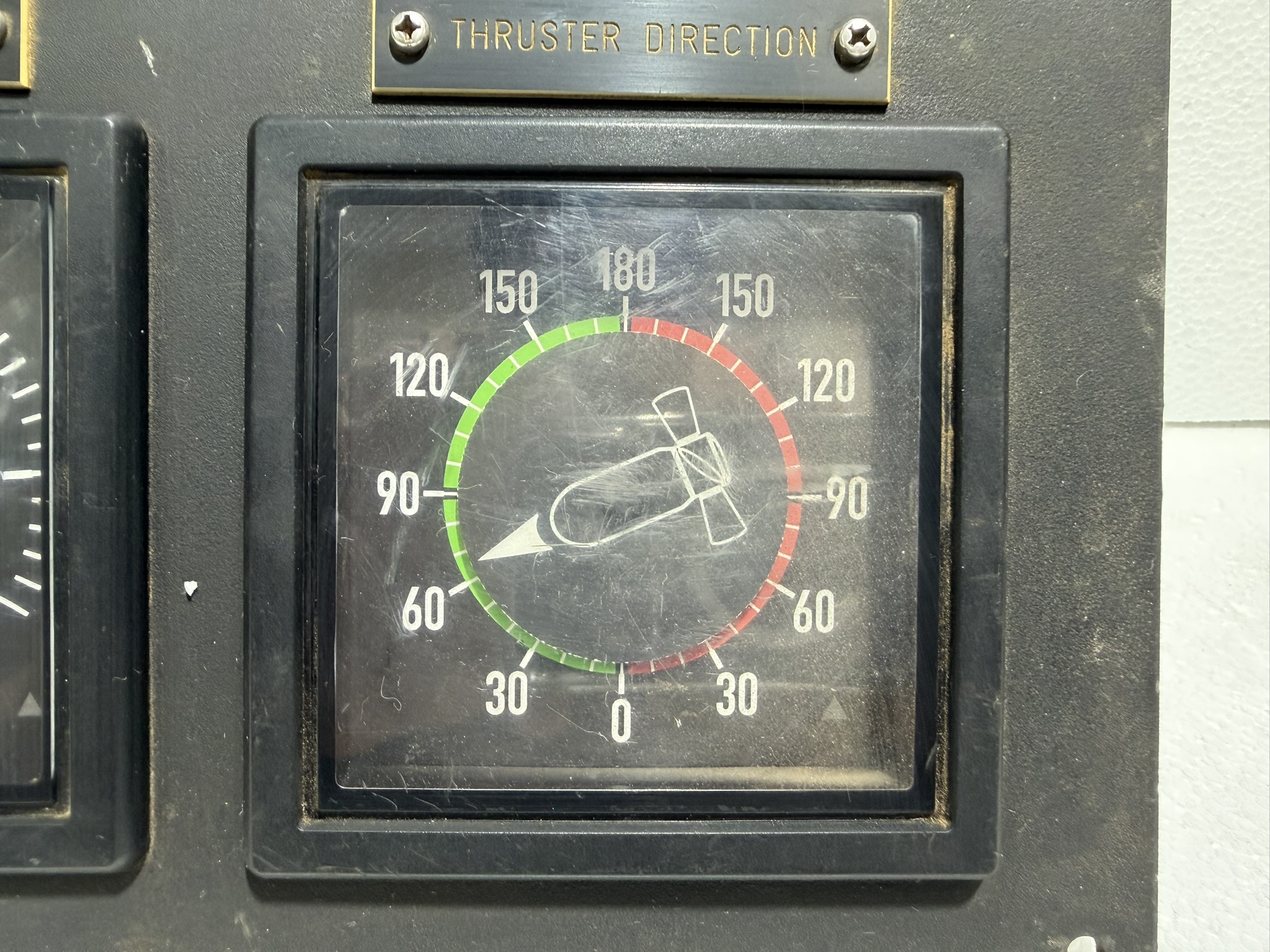

Installed Indicator 2: Thruster Direction Indicator
Thruster Direction Scale: 0–180 Degree Direction Display
Module Brand: DEIF
Module Type: XL96

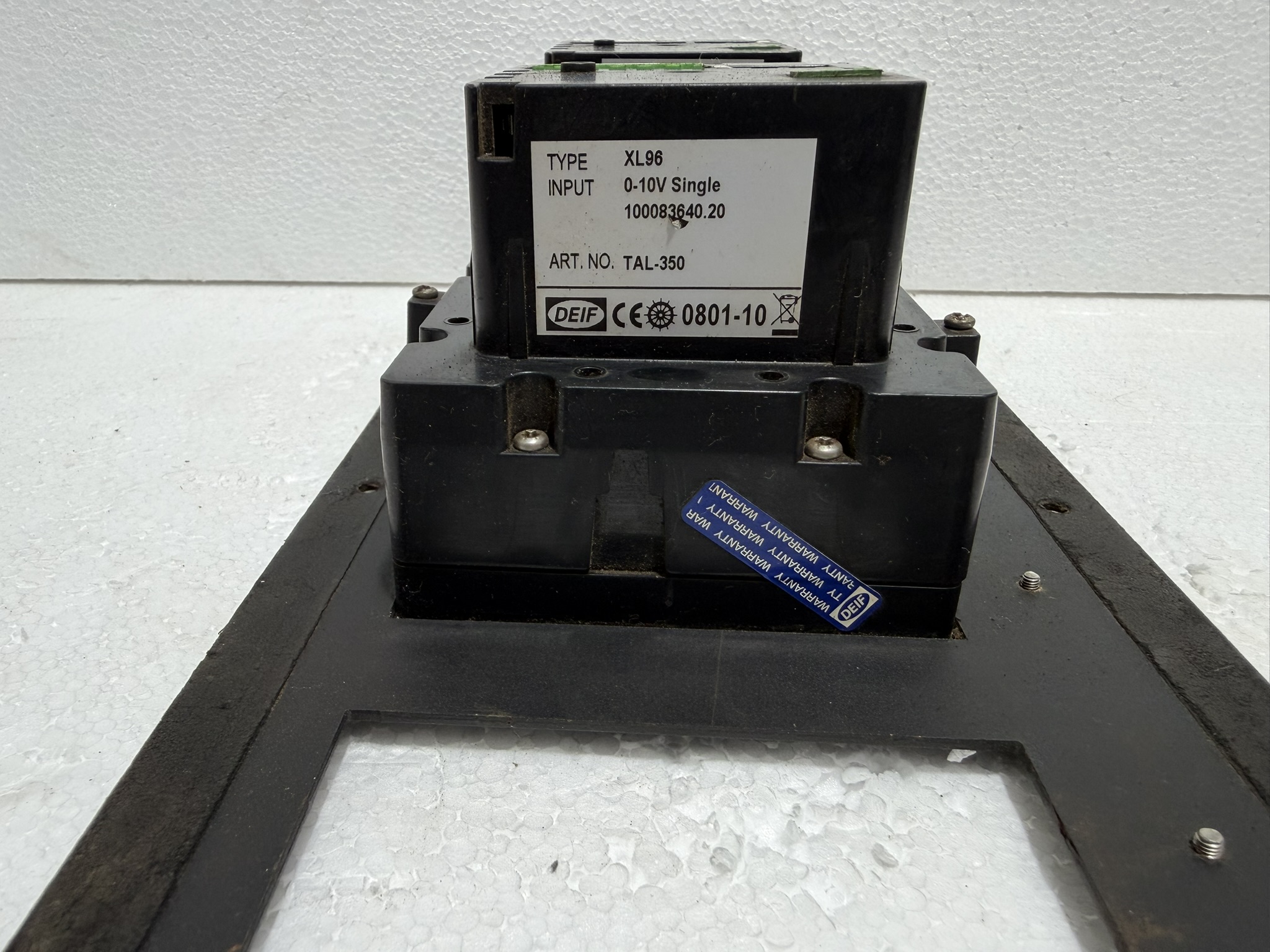

Module 1 Input: 0–10V Single
Module 1 Art. No.: TAL-350

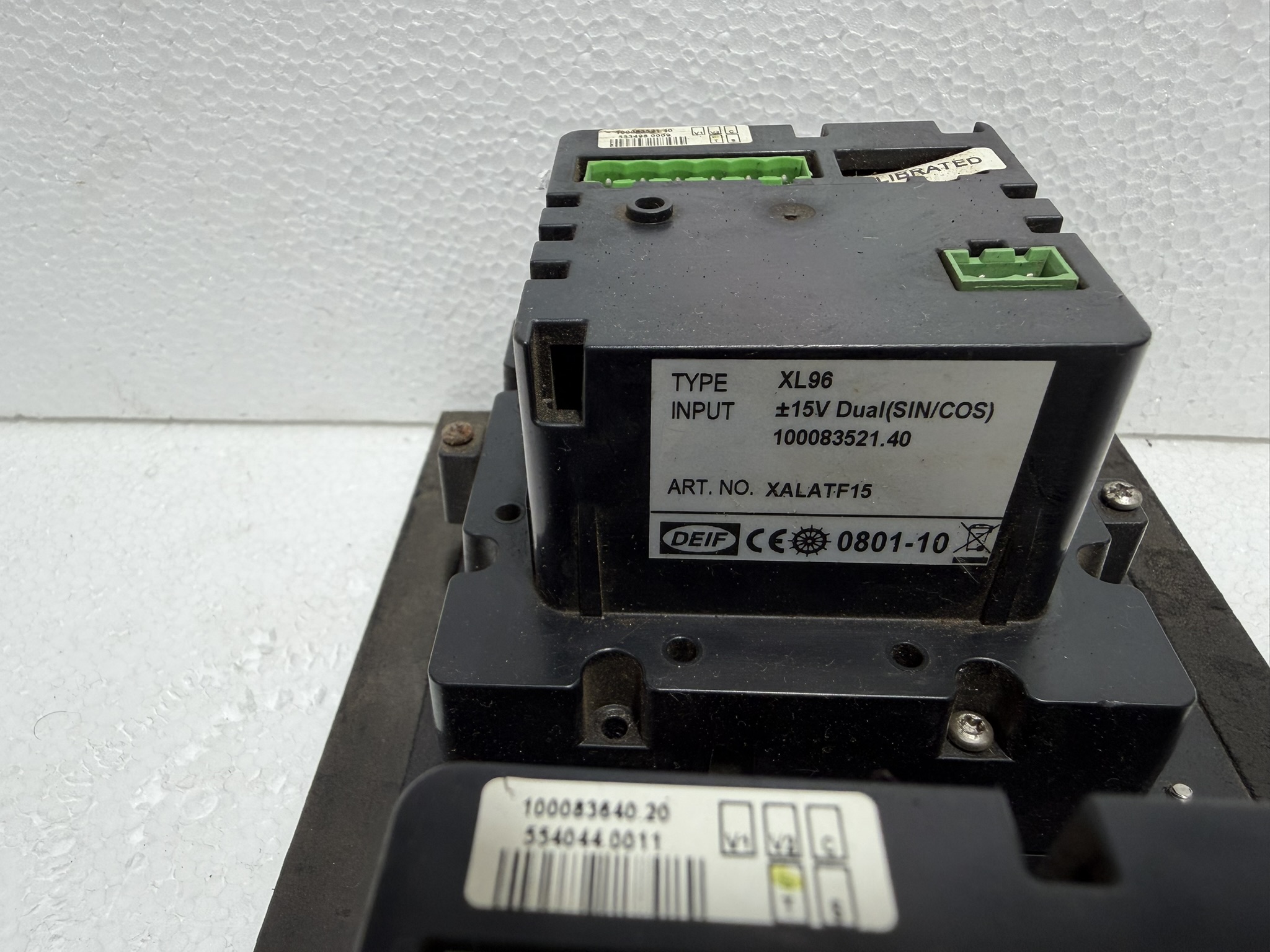

Module 2 Input: ±15V Dual (SIN/COS)
Module 2 Art. No.: XALATF15

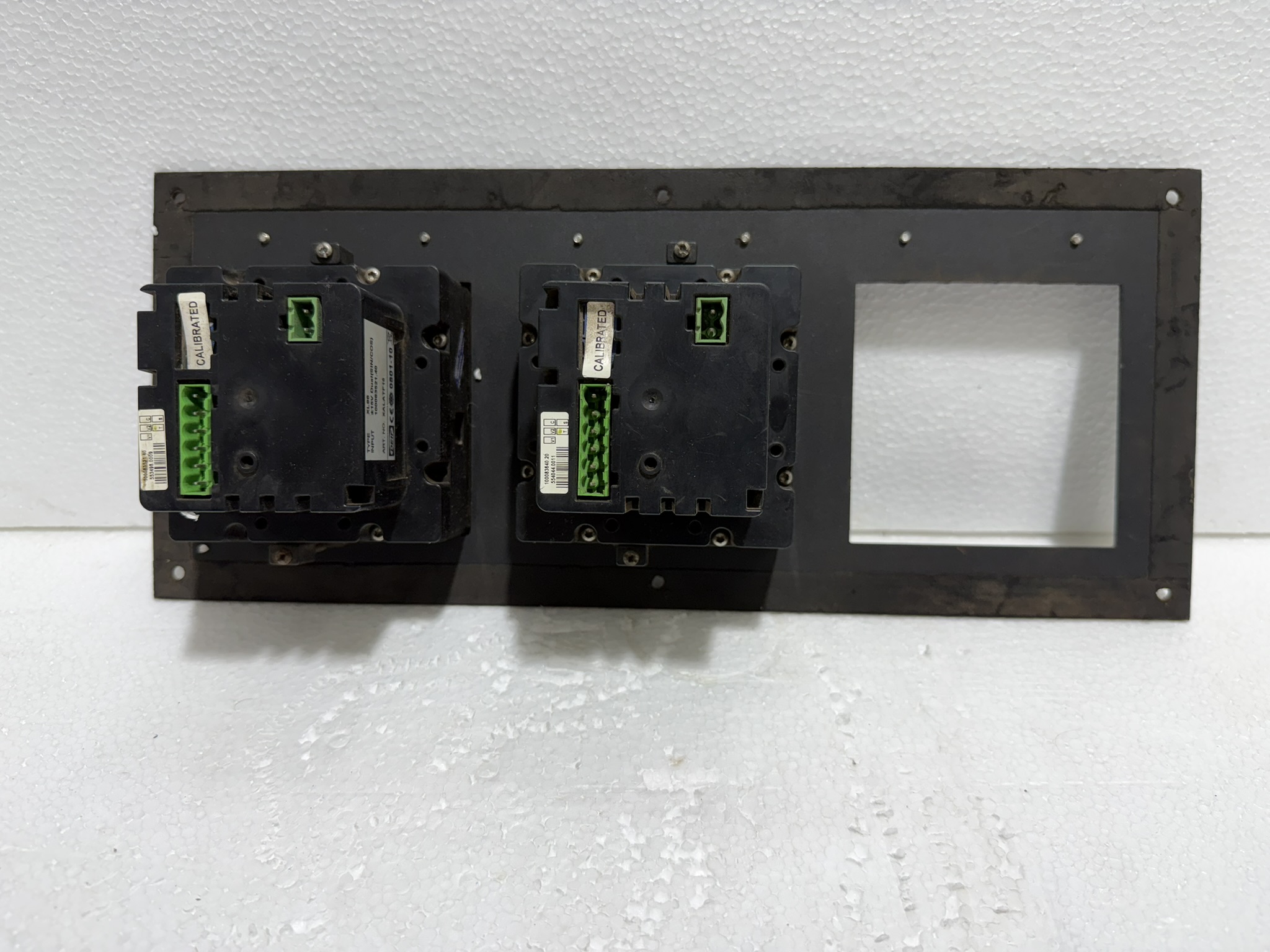

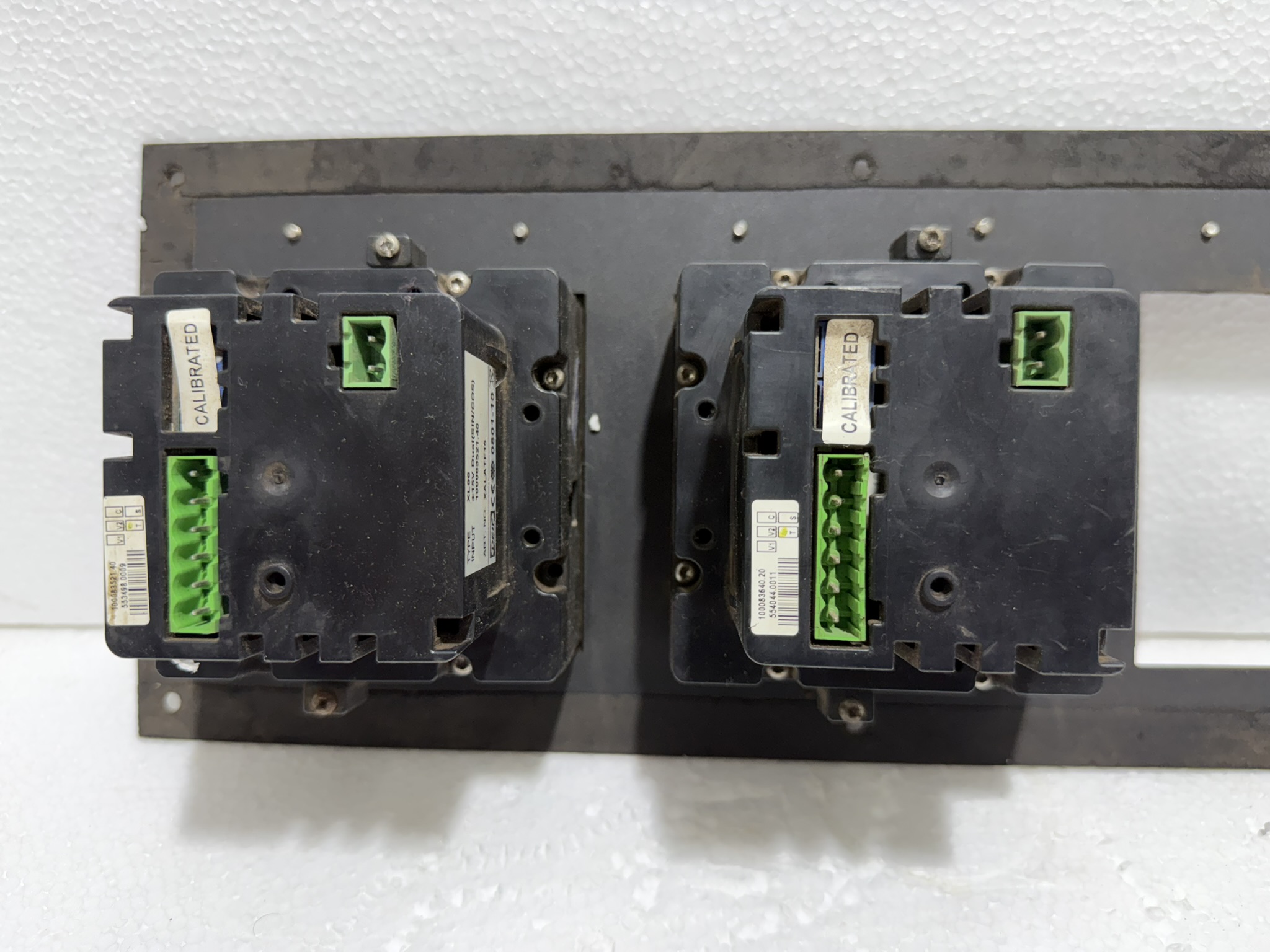

Connection Type: Rear Terminal Connections
Certification Marking: CE
Harbourline Ship Management offers a DEIF Left Arm Controller Panel Assembly used in marine vessel control and propulsion monitoring systems. The panel is fitted with display sections for M/E Speed, Propeller Speed, and Thruster Direction, making it suitable for bridge console or vessel control station applications.
The visible installed modules include DEIF XL96 units. One module is marked TYPE XL96, INPUT 0–10V Single, ART. NO. TAL-350, and another module is marked TYPE XL96, INPUT ±15V Dual (SIN/COS), ART. NO. XALATF15. The front panel includes a Propeller Speed indicator with 0–300 min⁻¹ scale and a Thruster Direction indicator with directional angle display.
This controller panel is ideal for marine automation, propeller speed indication, thruster direction monitoring, bridge control systems, and ship repair replacement requirements.
Features :
– DEIF marine left arm controller panel assembly
– Designed for marine bridge / propulsion control applications
– Includes propeller speed and thruster direction indication
– Propeller speed display with 0–300 min⁻¹ scale
– Thruster direction display with green/red direction range
– Fitted with DEIF XL96 control/indicator modules
– Visible module inputs: 0–10V Single and ±15V Dual SIN/COS
– Rear terminal connection design for panel wiring
– Suitable for vessel automation and retrofit projects
– Strong option for ship repair, spare replacement and marine control systems
Application Field :
– Marine Bridge Control Console
– Ship Propulsion Control System
– Thruster Control & Direction Monitoring
– Propeller Speed Indication System
– Main Engine / M.E Speed Monitoring Panel
– Vessel Automation & Control Panel
– Azimuth Thruster / Bow Thruster Monitoring System
– Engine Room Control System
– Ship Repair & Retrofit Projects
– Marine Electrical & Instrumentation Systems
– Offshore Vessel Control Panels
– Navigation & Manoeuvring Control Stations
– Marine Spare Replacement for DEIF Control Modules
– Propulsion Monitoring in Cargo Ships, Tankers, Offshore Vessels and Workboats
