Caterpillar EMCP 3.1 & 3.2 Control Panel Module
ITEM SPECIFICATION :
Brand: Caterpillar
Manufacturer: Caterpillar Inc.
Product Type: EMCP Control Panel Module
Compatible Series: EMCP 3.1 & EMCP 3.2
Part Number: 300-7647-00
Input Voltage: DC 24V ±15%
Relay Output: 2 Amps maximum at 28V DC
AC Current Input: 5 Amps and 1VA maximum
External CT Requirement: AC current input must use external CT
Connector Type: Rear multi-pin connector
Display Type: Front LCD display window
Control Buttons: RUN, AUTO, STOP, alarm mute, navigation keys
Application: Caterpillar generator control and monitoring system
Harbourline Ship Management offers a Caterpillar EMCP 3.1 & 3.2 Control Panel Module, suitable for Caterpillar generator control and monitoring applications. This module is designed for use with CAT EMCP 3.1 and EMCP 3.2 systems, commonly used in marine, industrial, and power generation equipment.

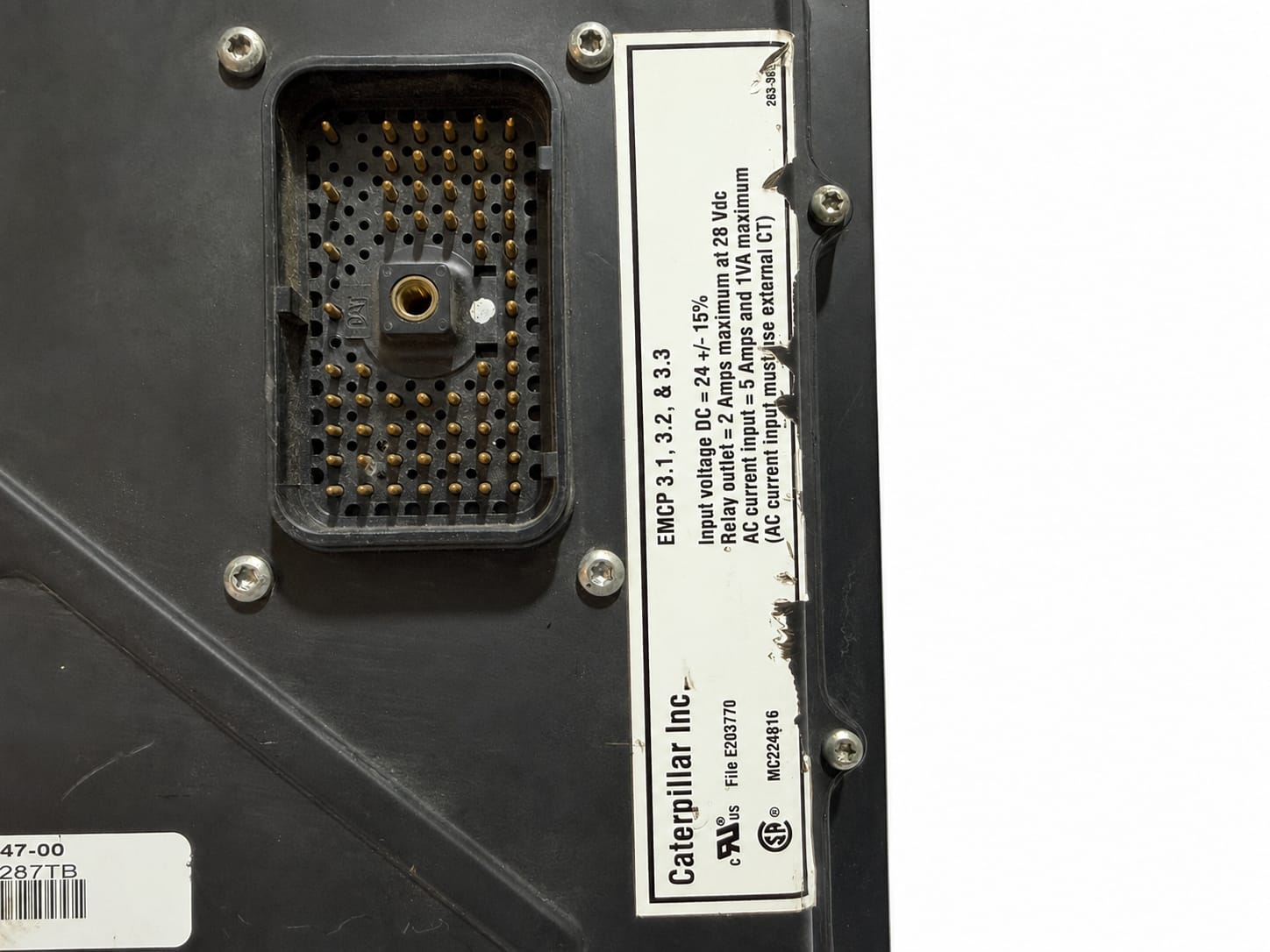

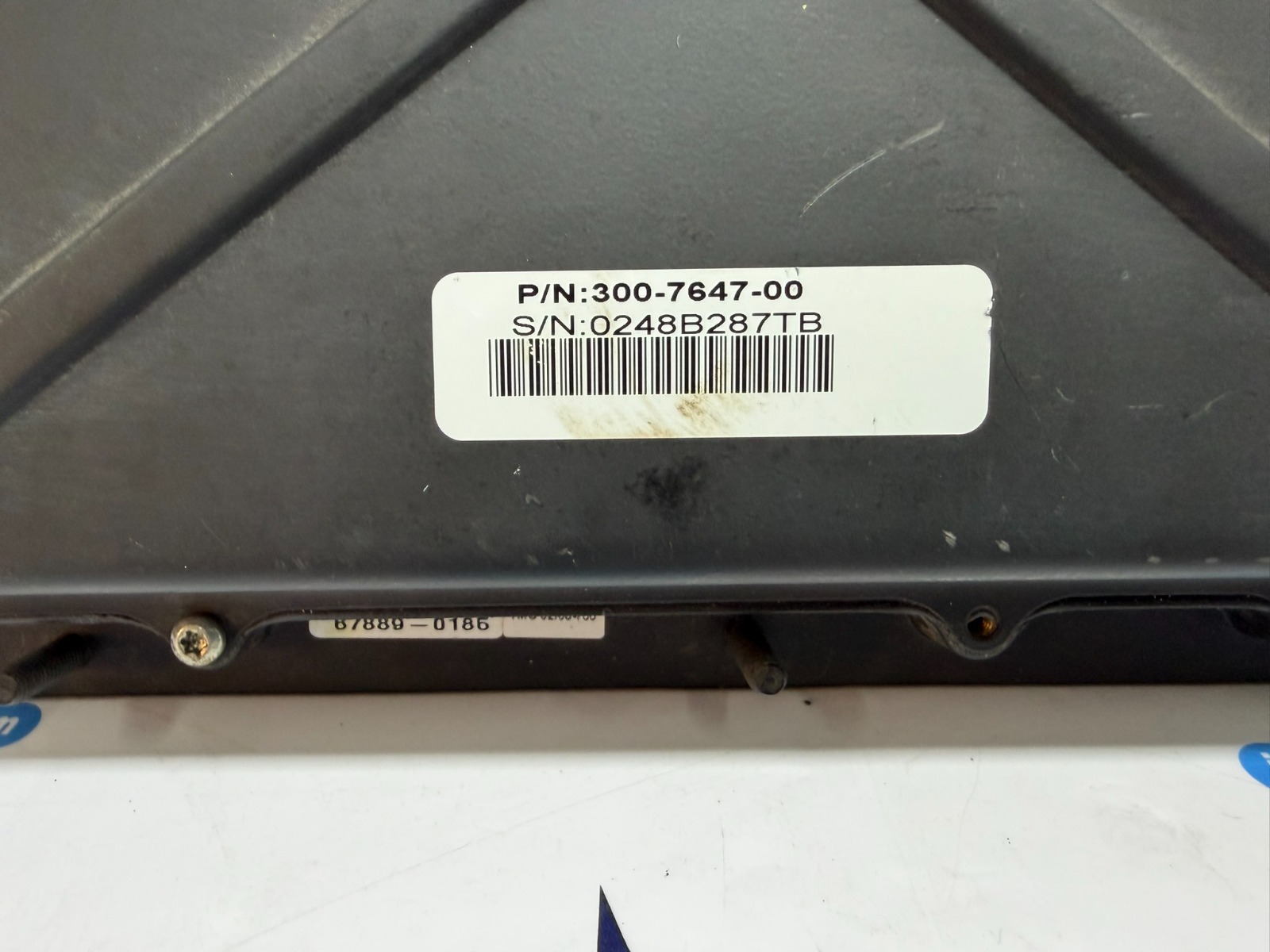

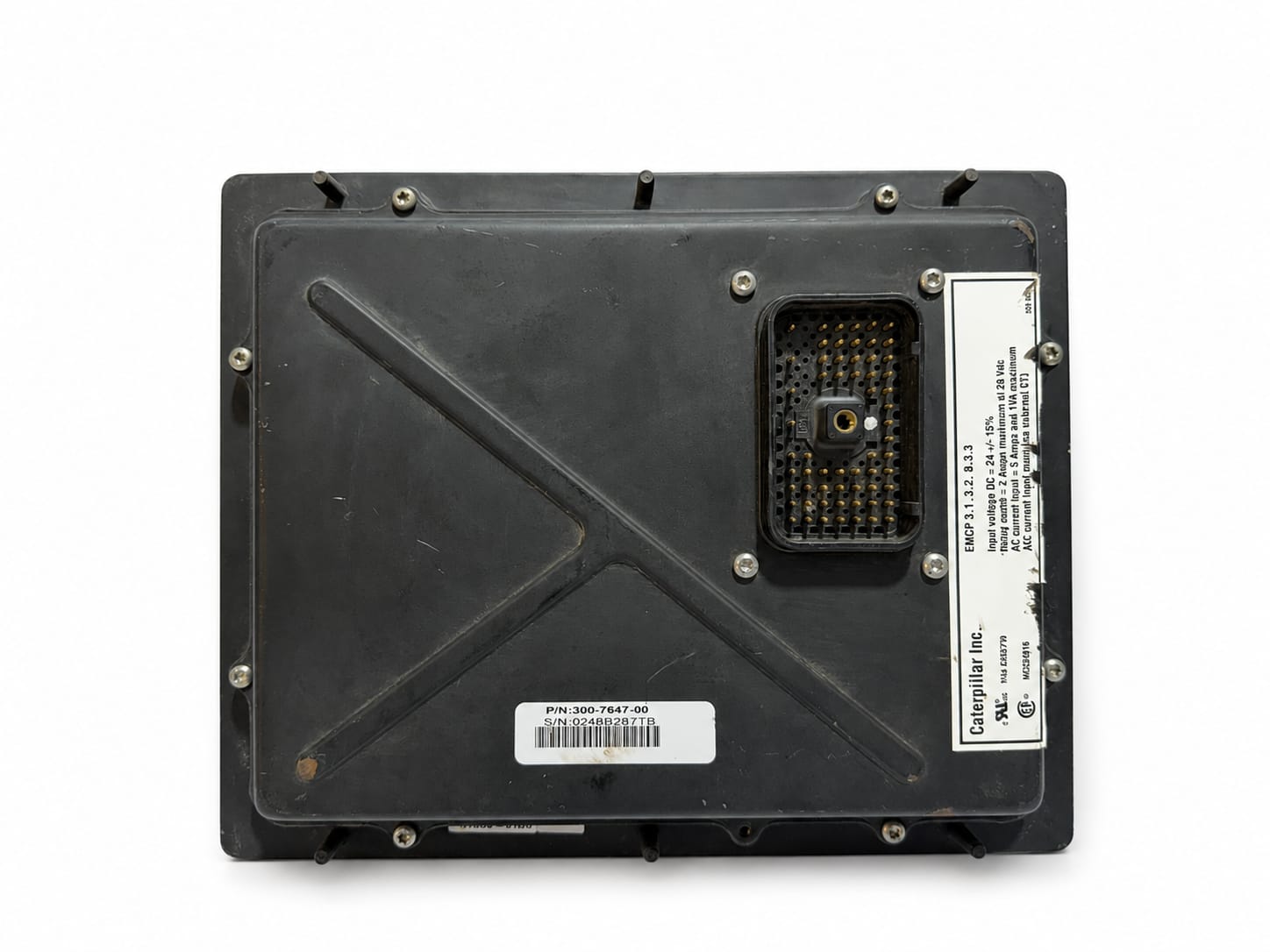

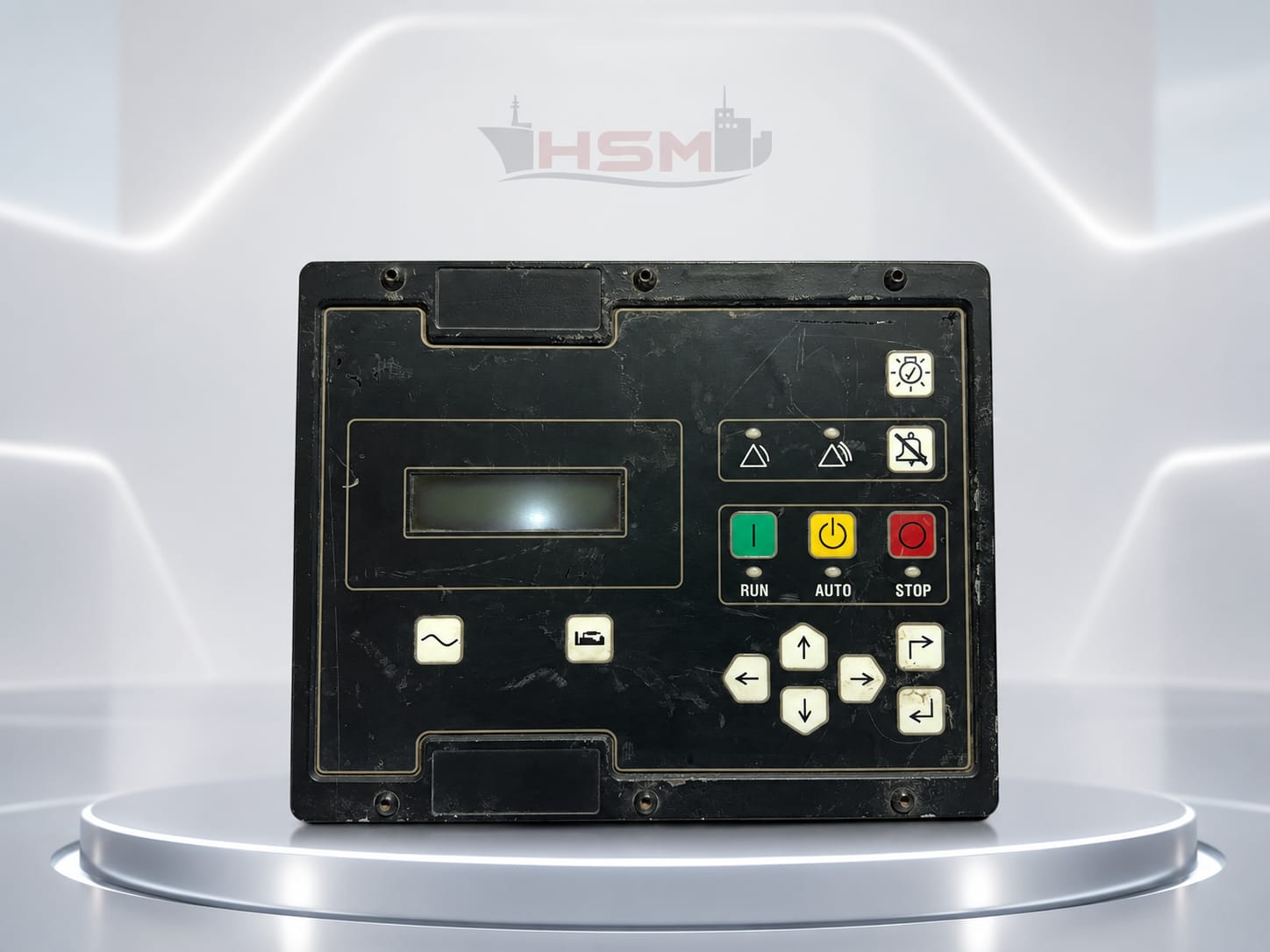

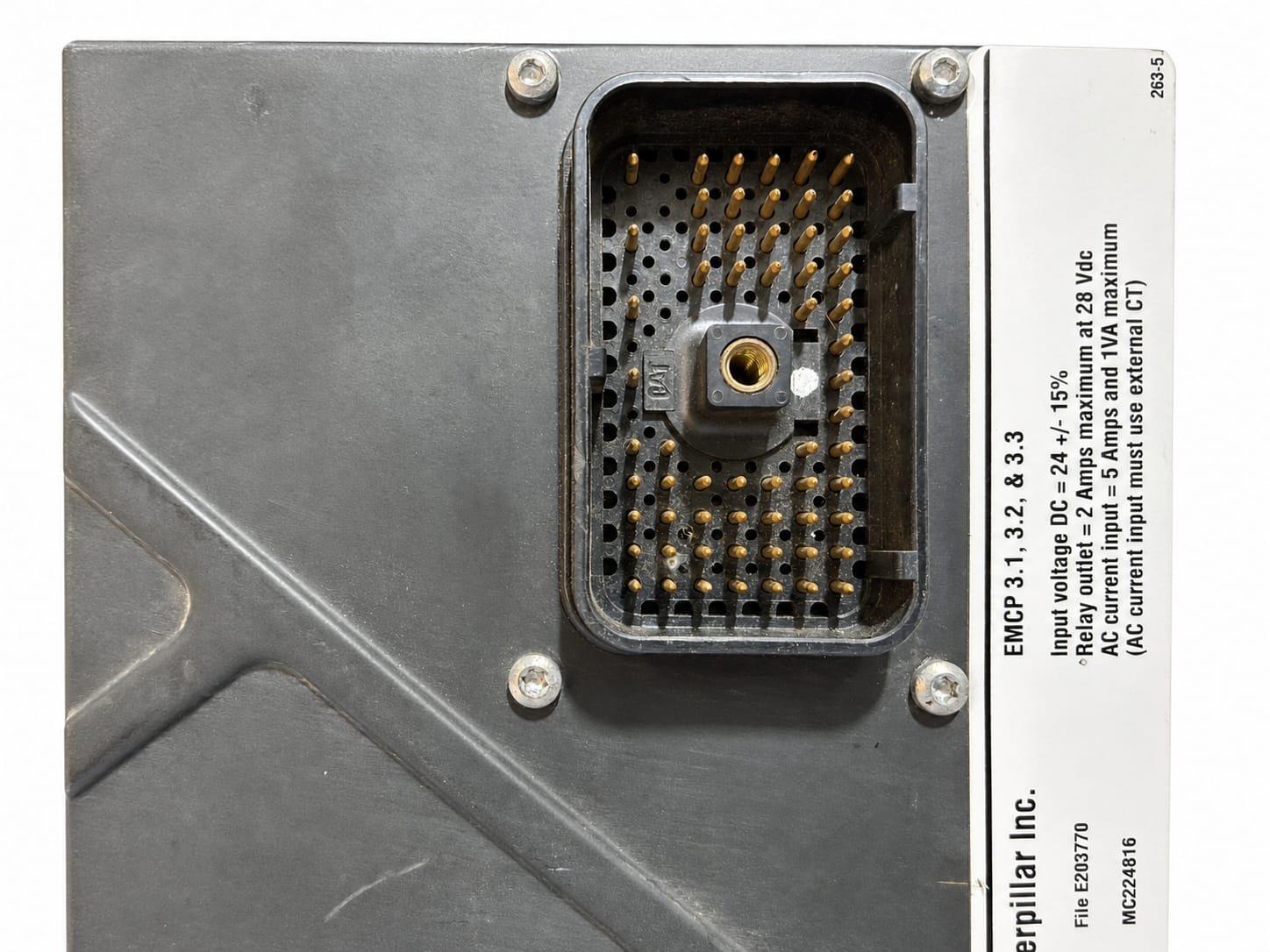

The unit features a front display panel with RUN, AUTO, STOP, alarm, navigation, and control buttons, along with a rear multi-pin connector interface for installation into generator control panels. Sticker information shows Caterpillar Inc., input voltage details, relay output rating, AC current input details, part number, and serial number.
Features :
– Compatible with Caterpillar EMCP 3.1 & EMCP 3.2 generator control systems
– Front LCD display window for generator monitoring information
– Built-in RUN, AUTO, and STOP control buttons
– Includes alarm/mute and navigation easy operation
– Rear multi-pin connector interface for panel connection
– Designed for 24V DC control system input
– Supports relay output up to 2A at 28V DC
– Supports AC current input with external CT
– Suitable for marine and industrial generator control panels
– Strong enclosure design for generator panel mounting
– Ideal replacement spare for CAT diesel generator control and monitoring systems
WORLDWIDE DISPATCH FROM BHAVNAGAR, INDIA
A spare sitting on a shelf in Bhavnagar is of no use to a vessel berthed in Rotterdam — so our dispatch desk is reachable around the clock and built to move fast. We routinely arrange same-day air freight from Mumbai and Ahmedabad to the major bunkering and crew-change ports worldwide, with documentation, customs and port-agent coordination handled in-house so the part lands at the gangway exactly when the vessel needs it.
WHAT EVERY DISPATCH INCLUDES
- Same-day air freight from Mumbai and Ahmedabad to major bunkering and crew-change ports worldwide, with faster routing when the requirement is urgent.
- Customs paperwork, export documentation and port-agent coordination managed end-to-end by our own team — not handed off to a third party.
- Every spare inspected and signed off by our marine engineers before it leaves the store, with photographs of the actual part shared before the PO is issued.
Once your order is confirmed we provide a clear dispatch timeline, and consignments are packed and routed to clear customs and reach the vessel inside your planned port stay. To get an availability check, quotation and dispatch estimate within the same working day, send us the engine make, the part description and your port of delivery — call +91 98256 45515 or email harbourlineshipmanagement@gmail.com, and our emergency dispatch lines stay open 24/7.
